Baldor

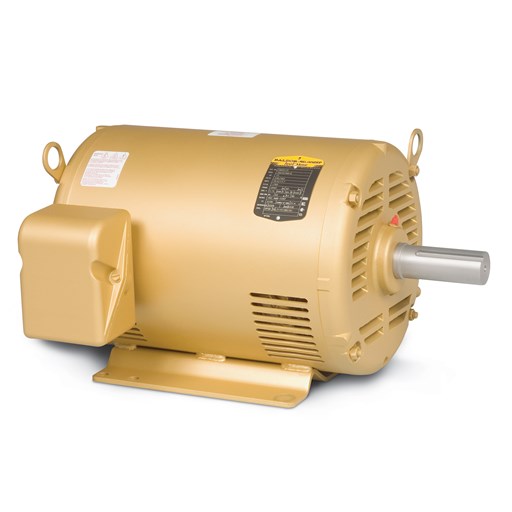

EM3157T Baldor General Purpose Motor (2HP, 1760RPM, 3PH, 60HZ, 145T, 3528M, OPSB, F1)
EM3157T Baldor General Purpose Motor (2HP, 1760RPM, 3PH, 60HZ, 145T, 3528M, OPSB, F1)
SKU:EM3157T
Precio habitual
$707.13 USD
Precio habitual
Precio de oferta
$707.13 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
EM3157T Baldor Motor (2HP,1760RPM,3PH,60HZ,145T,3528M,OPSB,F1)
Catalog Number EM3157T
Enclosure OPSB
Frame 145T
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 2.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals CSA EEV
NEMA PREMIUM
NEMA_PREMIUM
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 5.800 A @ 208.0 V
5.600 A @ 230.0 V
2.800 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 2.8 a
Insulation Class F
Inverter Code Inverter Ready
Catalog Number EM3157T
Enclosure OPSB
Frame 145T
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 2.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals CSA EEV
NEMA PREMIUM
NEMA_PREMIUM
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 5.800 A @ 208.0 V
5.600 A @ 230.0 V
2.800 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 2.8 a
Insulation Class F
Inverter Code Inverter Ready
KVA CodeK
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead Quantity/Wire Size9 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3528M
Mounting ArrangementF1
Number of Poles4
Overall Length12.12 IN
Power Factor77
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusROHS COMPLIANT
Service Factor1.15
Shaft Diameter0.875 IN
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1760 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None
