Baldor

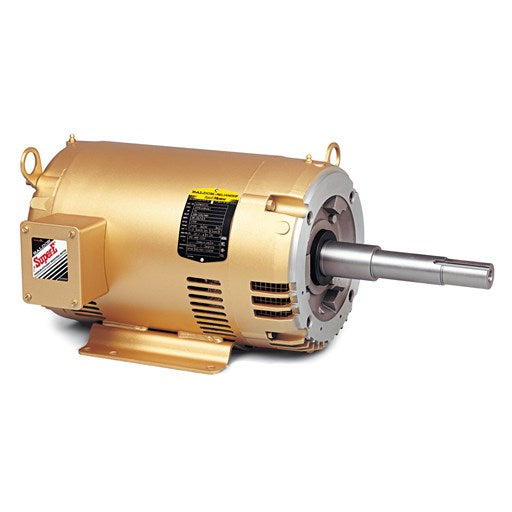

EJMM2534T Premium Efficient Super-E Baldor C-Face Close Coupled-Pump Motor (30 HP, 230/460 Volt, 60 Hz, 3600 RPM, 3 Phase, ODP Enclosure, 284JM Frame, Foot Mounted, F1)
EJMM2534T Premium Efficient Super-E Baldor C-Face Close Coupled-Pump Motor (30 HP, 230/460 Volt, 60 Hz, 3600 RPM, 3 Phase, ODP Enclosure, 284JM Frame, Foot Mounted, F1)
[COUNT] shoppers are looking at this right now
SKU:EJMM2534T
Precio habitual
$5,565.23 USD
Precio habitual
$7,015.00 USD
Precio de oferta
$5,565.23 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Baldor Motor EJMM2534T, HP: 30, RPM: 3600, Volts: 230/460, NEMA Frame : 284JM, "C" Dim : 26.56, Full Load Amps : 33, Enclosure: ODP, Foot Mounted, Motor Applications: Pumps, circulating fluids
| Applications |
| Applications for circulating and transferring fluids. Mounting designed to support pump unit. |
| Features |
| Oversized ball bearings with locked drive end construction to minimize end play. Furnished with rodent screens at both ends. EJMM and EJPM Super-E motors have NEMA Premium Efficiency. |
|
Tech Specs. |
|
|
Brand
|
Baldor Premium Efficient Super-E Pump Motor
|
|
Model Number
|
EJMM2534T
|
|
HP
|
30
|
|
RPM
|
3600
|
|
Volts
|
230/460
|
|
"C" Dim
|
26.56
|
|
NEMA Frame
|
284JM
|
|
Full Load Amps
|
33
|
|
Full Load Efficiency
|
91.7
|
|
Apx. Wt. (lb)
|
248
|
|
EISA Status
|
B
|
|
Phase
|
Three Phase
|
|
Motor Mount
|
Foot Mounted
|
|
Enclosure
|
ODP
|
|
Type
|
Close-Coupled Pump Motor
|
