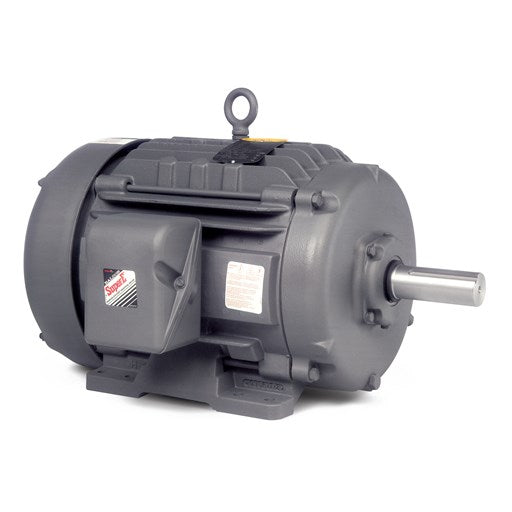

EHM2333T-5 Baldor Premium Efficient HVAC Motor (15 HP, 1800 RPM, 575 Volt, 3 Phase, 254T Frame, TEFC Enclosure, Foot Mounted)
EHM2333T-5 Baldor Premium Efficient HVAC Motor (15 HP, 1800 RPM, 575 Volt, 3 Phase, 254T Frame, TEFC Enclosure, Foot Mounted)
[COUNT] shoppers are looking at this right now
No reviews
SKU:EHM2333T-5
Precio habitual
$2,704.48 USD
Precio habitual
$3,409.00 USD
Precio de oferta
$2,704.48 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Baldor Motor EHM2333T-5, HP: 15, RPM: 1800, Volts: 575, NEMA Frame : 254T, "C" Dim : 23.16, Full Load Amps : 14.8, Enclosure: TEFC, HVAC Motor, Foot Mounted, 3 Phase
| Applications |
| Heating, ventilation and air conditioning blower and fan motors. |
| Features |
| Class F Insulation, 1.15 service factor, ball bearings with plugged grease passages, heavy-gauge steel and cast-iron frames, dynamically balanced rotors for reduced vibration and quiet operation. Suitable for mounting in any position. All models meet or exceed NEMA Premium efficiencies, are Inverter Ready, and have a 3-year warranty. Includes bar-coded spec number label. |
|
Tech Specs. |
|
|
Brand
|
Baldor Premium Efficient HVAC Motor
|
|
Model Number
|
EHM2333T-5
|
|
HP
|
15
|
|
RPM
|
1800
|
|
Volts
|
575
|
|
"C" Dim
|
23.16
|
|
NEMA Frame
|
254T
|
|
Full Load Amps
|
14.8
|
|
Full Load Efficiency
|
92.4
|
|
Apx. Wt. (lb)
|
238
|
|
EISA Status
|
A
|
|
Phase
|
3 Phase
|
|
Motor Mount
|
Foot Mounted
|
|
Enclosure
|
TEFC
|
|
Service Factor
|
1.15
|
|
Warranty
|
3 Year Warranty
|
|
|
|
|
|
|
|
|
|
|
|
|
