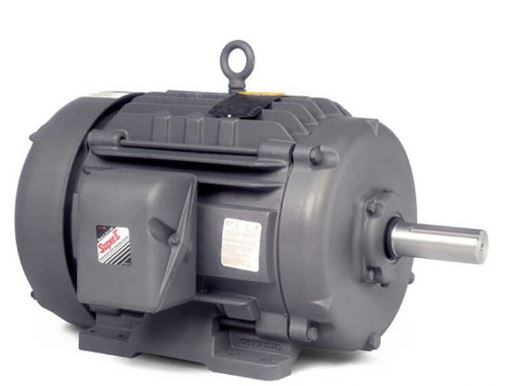

EGDM2334T Baldor Motor GRAIN DRYER SUPER-E MOTOR (20 HP, 1770 RPM, 3 Phase, 256TZ Frame, TEFC)
EGDM2334T Baldor Motor GRAIN DRYER SUPER-E MOTOR (20 HP, 1770 RPM, 3 Phase, 256TZ Frame, TEFC)
SKU:EGDM2334T
Precio habitual
$3,593.36 USD
Precio habitual
$5,915.00 USD
Precio de oferta
$3,593.36 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Catalog Number EGDM2334T
Enclosure TEFC
Frame 256TZ
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group None
Haz Area Division Not Applicable
Motor Letter Type Three Phase
Output @ Frequency 20.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals UR
NEMA_PREMIUM
CSA EEV
NEMA_PREMIUM
CSA EEV
Ambient Temperature40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 24.000 A @ 460.0 V
48.000 A @ 230.0 V
52.000 A @ 208.0 V
48.000 A @ 230.0 V
52.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps24.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type0960M
Mounting ArrangementF1
Number of Poles4
Overall Length24.55 IN
Power Factor83
Product Family General Purpose
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor1.15
Shaft Diameter1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
