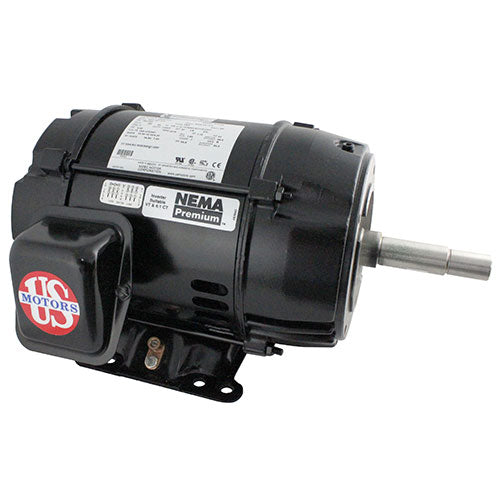

EEQ500 US Motor Pool & Spa Motor (5 HP, ODP, 3550 RPM, 1PH)
EEQ500 US Motor Pool & Spa Motor (5 HP, ODP, 3550 RPM, 1PH)
[COUNT] shoppers are looking at this right now
SKU:EEQ500
Precio habitual
$1,222.69 USD
Precio habitual
$0.00 USD
Precio de oferta
$1,222.69 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
EEQ500 US Motor Pool & Spa Motor (5 HP, ODP, 3550 RPM, 1PH)
| Model_Number: | DB02 |
| PRODUCT NAME: | 5 HP - DP - 3550 |
| PHASETYPE: | 1_PHASE |
| MOTOR ENCLOSURE: | DP |
| HORSEPOWER: | 5 |
| POLES: | 2 |
| NUMBER SPEEDS: | 1 |
| RPM: | 3550 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 230 |
| VOLTS : | 230 |
| FRME : | 184 |
| SHAFT CODE: | JMZ |
| ASSEMBLY POSITION: | F1 |
| MOTOR TYPE: | DM4 |
| OPPOSITE END BEARING: | 6204-2Z-J/C3 |
| SHAFT END BEARING: | 6307-2Z-J/C3 |
| AMBIENT: | 40 |
| SERVICE FACTOR: | 1.15 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 78 |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | G |
| NEMA NOMINAL EFFICIENCY: | 88 |
| FULL LOAD AMPS PRIMARY: | 20.0 |
| SERVICE FACTOR AMPS PRIMARY: | 23.0 |
