U.S. Motors

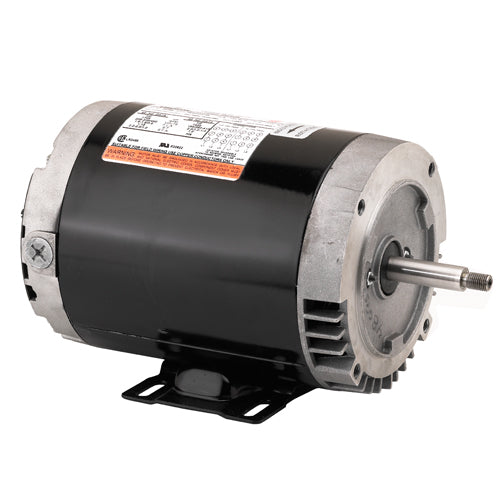

EE833B US Motor Special Application Commercial Pump Motor (5 HP, ODP, 3505 RPM, 208-230/460V, 60 Hz, 56J Frame)

EE833B US Motor Special Application Commercial Pump Motor (5 HP, ODP, 3505 RPM, 208-230/460V, 60 Hz, 56J Frame)

[COUNT] shoppers are looking at this right now

EE833B

$820.23 USD
$0.00 USD $820.23 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

EE833B US Motor Special Application Commercial Pump Motor (5 HP, ODP, 3505 RPM, 208-230/460V, 60 Hz, 56J Frame)

Model_Number
DS97
PRODUCT NAME
5 HP - ODP - 3505
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
ODP
HORSEPOWER
5
KILOWATTS
3.7
POLES
2
NUMBER SPEEDS
1
RPM
3505
RPM 2
3505
RPM 3
3475
HERTZ
60
VOLTS PRIMARY
208-230/460
VOLTS
460
VOLTS 2
230
VOLTS 3
208
FRME
56
SHAFT CODE
J
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
DF
OPPOSITE END BEARING
6203-2RS-J/C3
SHAFT END BEARING
6205-2RS-J/C3
AMBIENT
40
SERVICE FACTOR
1
STARTCAPMFD
N\A
SHIPPING WEIGHT
35
BREAKDOWN TORQUE
526
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
441
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
N
LOCKED ROTOR AMPS
71
NEMA NOMINAL EFFICIENCY
88.5
FULL LOAD AMPS PRIMARY
13.1-11.8/5.9
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
Ver todos los detalles
