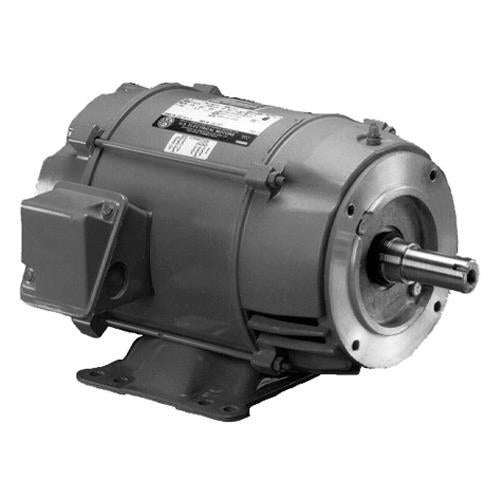

EE612 U.S. Motors General Purpose Motor (2 HP, 56C Frame, Three Phase, 3600 RPM)

US Motors Emerson EE612, HP: 2, RPM: 3600, Volts: 208-230/460, Motor Mount: Footless, Frame: 56C, SF: 1.2, Phase: Three, Enclosure: ODP, Fans, Compressors, Pumps

Applications

For use on pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.

Features

Class F Insulation, Class B Rise at Service Factor (140 Frame & Larger), Rolled Steel Frame 56-320, Cast Iron Frame 360-440, Aluminum End Shields 56-250, Cast Iron End, "CE" Mark on Nameplate (140 Frame & Larger), Full 50 & 60 Hertz Operating Data on Nameplate (140 Frame & Larger), 40C Ambient, NEMA Design B Performance On 60 Hz SineWave Power, Full HP @ 50 Hz, Regreasable Bearings 250 Frame & Up, Double Shielded Bearings 48-400, Bearing Cap On 440 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, F1 Assembly Position, Lifting Provisions 210 Frame & Up

Tech Specs.
Brand	U.S. Motors/Emerson Premium Efficient General Purpose Industrial C-Face Motor
Model Number	EE612
HP	2
RPM	3600
Volts	208-230/460
Motor Mount	Footless
Frame	56C
Full Load Amps	5.5-5.1/2.5
Full Load Efficiency	-
Apx. Wt. (lb)	33
SF	1.2
Phase	Three
Length	11.9
Enclosure	ODP
Type	General Purpose Industrial C-Face Motor
