U.S. Motors

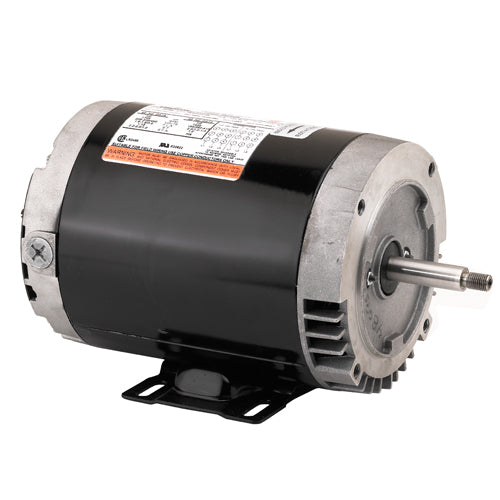

EE607 US Motor Special Application Commercial Pump Motor (1-1/2 HP, ODP, 3450 RPM, 3 Phase, C Face, 60 Hz, 208-230/460 V)

EE607 US Motor Special Application Commercial Pump Motor (1-1/2 HP, ODP, 3450 RPM, 3 Phase, C Face, 60 Hz, 208-230/460 V)

👁️ [COUNT] People are currently viewing this product.

EE607

$556.85 USD
$0.00 USD $556.85 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Catalog #
EE607
Model_Number
P063TLH4853013J
PRODUCT NAME
1.5 HP - ODP - 3450
PHASETYPE
3_POLYPHASE
MOTOR ENCLOSURE
ODP
HORSEPOWER
1.5
KILOWATTS
1.1
POLES
2
NUMBER SPEEDS
1
RPM
3450
RPM 2
2850
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
208-230/460 V
VOLTS
208
VOLTS 2
230
VOLTS 3
460
STATOR DIAMETER
6.3
STACK
1.75
MOUNTING
C-FACE
MOTOR TYPE
DF
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CCW DRIVE END
SERVICE FACTOR
1.3
SHIPPING WEIGHT
17
THERMAL PROTECTION
NONE
BREAKDOWN TORQUE
41.72
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
23.53
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
M
LOCKED ROTOR AMPS
8.43
FULL LOAD AMPS PRIMARY
5.0-5.0/2.5
SERVICE FACTOR AMPS PRIMARY
6.0-5.8/2.9
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
Ver todos los detalles
