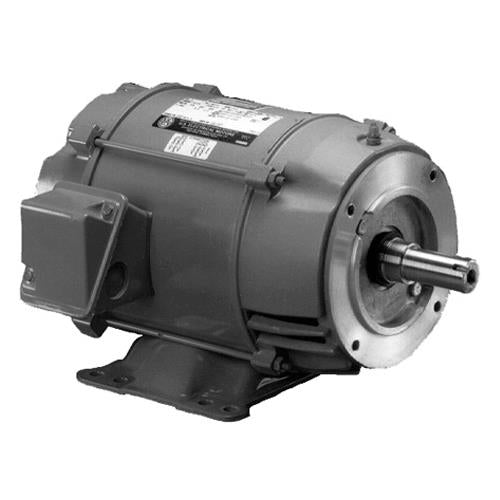

EE511 U.S. Motors General Purpose Motor (1 HP, 56C Frame, Three Phase, 3600 RPM)
EE511 U.S. Motors General Purpose Motor (1 HP, 56C Frame, Three Phase, 3600 RPM)
SKU:EE511
Precio habitual
$427.54 USD
Precio habitual
Precio de oferta
$427.54 USD
Precio unitario
/
por
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
US Motors Emerson EE511, HP: 1, RPM: 3600, Volts: 208-230/460, Motor Mount: Footless, Frame: 56C, SF: 1.4, Phase: Three, Enclosure: ODP, Fans, Compressors, Pumps
Applications |
For use on pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal. |
Features |
Class F Insulation, Class B Rise at Service Factor (140 Frame & Larger), Rolled Steel Frame 56-320, Cast Iron Frame 360-440, Aluminum End Shields 56-250, Cast Iron End, "CE" Mark on Nameplate (140 Frame & Larger), Full 50 & 60 Hertz Operating Data on Nameplate (140 Frame & Larger), 40C Ambient, NEMA Design B Performance On 60 Hz SineWave Power, Full HP @ 50 Hz, Regreasable Bearings 250 Frame & Up, Double Shielded Bearings 48-400, Bearing Cap On 440 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, F1 Assembly Position, Lifting Provisions 210 Frame & Up |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Premium Efficient General Purpose Industrial C-Face Motor |
Model Number |
EE511 |
HP |
1 |
RPM |
3600 |
Volts |
208-230/460 |
Motor Mount |
Footless |
Frame |
56C |
Full Load Amps |
3.5-3.4/1.7 |
Full Load Efficiency |
- |
Apx. Wt. (lb) |
26 |
SF |
1.4 |
Phase |
Three |
Length |
11.6 |
Enclosure |
ODP |
Type |
General Purpose Industrial C-Face Motor |
