U.S. Motors

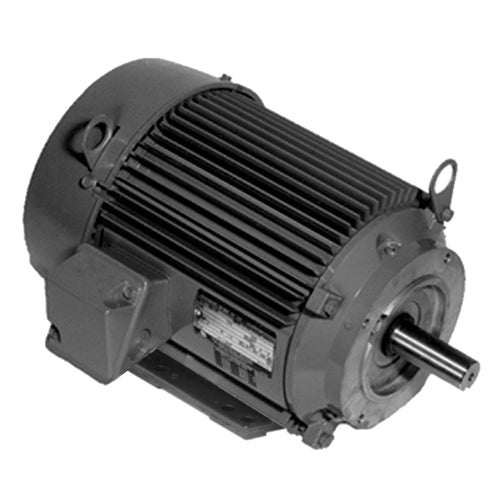

EE283B US Motor Special Application Commercial Motor (1/2 HP, 3450 RPM, TEFC, 3 Phase, 208-230/460V)
EE283B US Motor Special Application Commercial Motor (1/2 HP, 3450 RPM, TEFC, 3 Phase, 208-230/460V)
SKU:EE283B
Precio habitual
$274.51 USD
Precio habitual
Precio de oferta
$274.51 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
EE283B US Motor Special Application Commercial Motor (1/2 HP, 3450 RPM, TEFC, 3 Phase, 208-230/460V)
| Model_Number: | P063GCS4910013J |
| CAT # | EE283B |
| PRODUCT NAME: | .5 HP - TEFC - 3450 |
| PHASETYPE: | 3_POLYPHASE |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | .5 |
| KILOWATTS: | 0.4 |
| POLES: | 2 |
| NUMBER SPEEDS: | 1 |
| RPM: | 3450 |
| RPM 2: | 2850 |
| HERTZ: | 60 |
| HERTZ 2: | 50 |
| VOLTS PRIMARY: | 208-230/460 V |
| VOLTS : | 208 |
| VOLTS 2: | 230 |
| VOLTS 3: | 460 |
| STATOR DIAMETER: | 6.3 |
| STACK: | 1.125 |
| MOUNTING: | C-FACE/BASE |
| MOTOR TYPE: | J |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | CCW DRIVE END |
| SERVICE FACTOR: | 1.6 |
| SHIPPING WEIGHT: | 26 |
| THERMAL PROTECTION: | NONE |
| BREAKDOWN TORQUE: | 76.16 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 44.34 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | M |
| LOCKED ROTOR AMPS: | 15.85 |
| FULL LOAD AMPS PRIMARY: | 2.0-1.9/.95 |
| SERVICE FACTOR AMPS PRIMARY: | 2.8-2.7/1.35 |
| Replaces Emerson Model | P63GCS-4910 |
