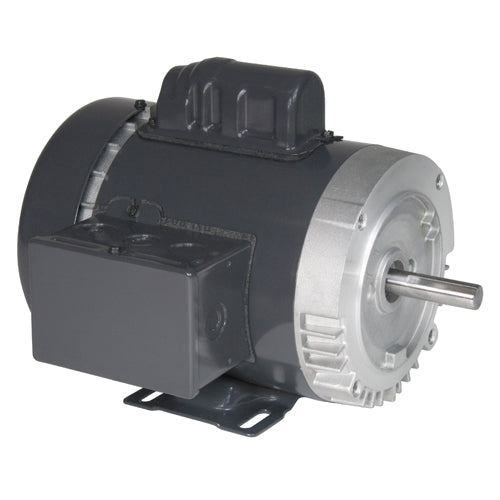

EC09 US Motor Special Application Commercial Pump Motor (Capacitor Start, 1 HP, TEFC, 115/208-230V, 1 Phase, 56C Frame)
EC09 US Motor Special Application Commercial Pump Motor (Capacitor Start, 1 HP, TEFC, 115/208-230V, 1 Phase, 56C Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:EC09
Precio habitual
$403.16 USD
Precio habitual
$0.00 USD
Precio de oferta
$403.16 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
EC09 US Motor (Capacitor Start, 1 HP, TEFC, 115/208-230V)
| PHASETYPE: | 1_CAPACITOR START |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | 1 |
| KILOWATTS: | 0.8 |
| POLES: | 2 |
| NUMBER SPEEDS: | 1 |
| RPM: | 3450 |
| RPM 2: | 2850 |
| HERTZ: | 60 |
| HERTZ 2: | 50 |
| VOLTS PRIMARY: | 115/208-230 & 110/220 V |
| VOLTS : | 115 |
| VOLTS 2: | 208 |
| VOLTS 3: | 230 |
| VOLTS 4: | 110 |
| VOLTS 5: | 220 |
| FRME : | 56 |
| SHAFT CODE: | C |
| STATOR DIAMETER: | 6.3 |
| STACK: | 2.625 |
| MOUNTING: | C-FACE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | CCW DRIVE END REV |
| STARTCAPMFD: | 297 |
| SHIPPING WEIGHT: | 28 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 75.39 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 45.42 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | K |
| LOCKED ROTOR AMPS: | 64.8 |
| FULL LOAD AMPS PRIMARY: | 12.8/6.6-6.4 |
| SERVICE FACTOR AMPS PRIMARY: | 13.8/7.2-6.9 |
