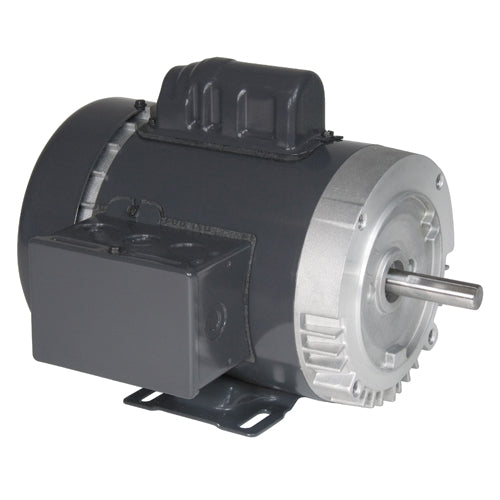

EC06 U.S. Motors Capacitor Start General Purpose Motor (3/4 HP, 56C Frame, 3600 RPM, 56C Frame, 1 Phase, TEFC, Footless Mount, Single Speed, Reversible Rotation)
EC06 U.S. Motors Capacitor Start General Purpose Motor (3/4 HP, 56C Frame, 3600 RPM, 56C Frame, 1 Phase, TEFC, Footless Mount, Single Speed, Reversible Rotation)
[COUNT] shoppers are looking at this right now
No reviews
SKU:EC06
Precio habitual
$466.71 USD
Precio habitual
$0.00 USD
Precio de oferta
$466.71 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
US Motors Emerson EC06, HP: 3/4, RPM: 3600, Volts: 115/208-230, Frame: 56C, "C" Dim. : 11.9, Speed: Single , Motor Mount : Footless, Enclosure: TEFC, Notes: Capacitor Start , Blowers, pumps
| Applications |
| For use on air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment. |
| Features |
| Double Shielded Ball Bearings; Class B Insulation; Continuous Duty; 40C Ambient; Capacitor Start; Induction Run; F1 Assembly; Reversible Rotation; 50/60 Hz Motors Have 1.0 S.F. on 50 Hz |
|
Tech Specs. |
|
|
Brand
|
U.S. Motors/Emerson General Purpose Single Phase C-Face Motor
|
|
Model Number
|
EC06
|
|
HP
|
3/4
|
|
RPM
|
3600
|
|
Volts
|
115/208-230
|
|
SF
|
1.15
|
|
Frame
|
56C
|
|
Full Load Amps
|
10.0/5.2-5.0
|
|
"C" Dim.
|
11.9
|
|
Apx. Wt. (lb)
|
26
|
|
Speed
|
Single
|
|
Phase
|
Single
|
|
Motor Mount
|
Footless
|
|
Enclosure
|
TEFC
|
|
Type
|
General Purpose Single Phase C-Face Motor
|
|
Rotation
|
Reversible
|
|
Notes
|
Capacitor Start
|
|
|
|
|
|
|
|
|
|
