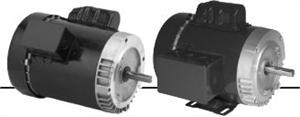

EC03 U.S. Motors General Purpose Motor (1/2 HP, 56C Frame, 3600 RPM)
EC03 U.S. Motors General Purpose Motor (1/2 HP, 56C Frame, 3600 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:EC03
Precio habitual
$372.95 USD
Precio habitual
$0.00 USD
Precio de oferta
$372.95 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
US Motors Emerson EC03, HP: 1/2, RPM: 3600, Volts: 115/208-230, Frame: 56C, "C" Dim. : 11.4, Speed: Single , Motor Mount : Footless, Enclosure: TEFC, Notes: Capacitor Start , Blowers, pumps
| Applications |
| For use on air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment. |
| Features |
| Double Shielded Ball Bearings; Class B Insulation; Continuous Duty; 40C Ambient; Capacitor Start; Induction Run; F1 Assembly; Reversible Rotation; 50/60 Hz Motors Have 1.0 S.F. on 50 Hz |
Tech Specs. | |
Brand |
U.S. Motors/Emerson General Purpose Single Phase C-Face Motor |
Model Number |
EC03 |
HP |
1/2 |
RPM |
3600 |
Volts |
115/208-230 |
SF |
1.15 |
Frame |
56C |
Full Load Amps |
7.8/4.1-3.9 |
"C" Dim. |
11.4 |
Apx. Wt. (lb) |
23 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Footless |
Enclosure |
TEFC |
Type |
General Purpose Single Phase C-Face Motor |
Rotation |
Reversible |
Notes |
Capacitor Start |
