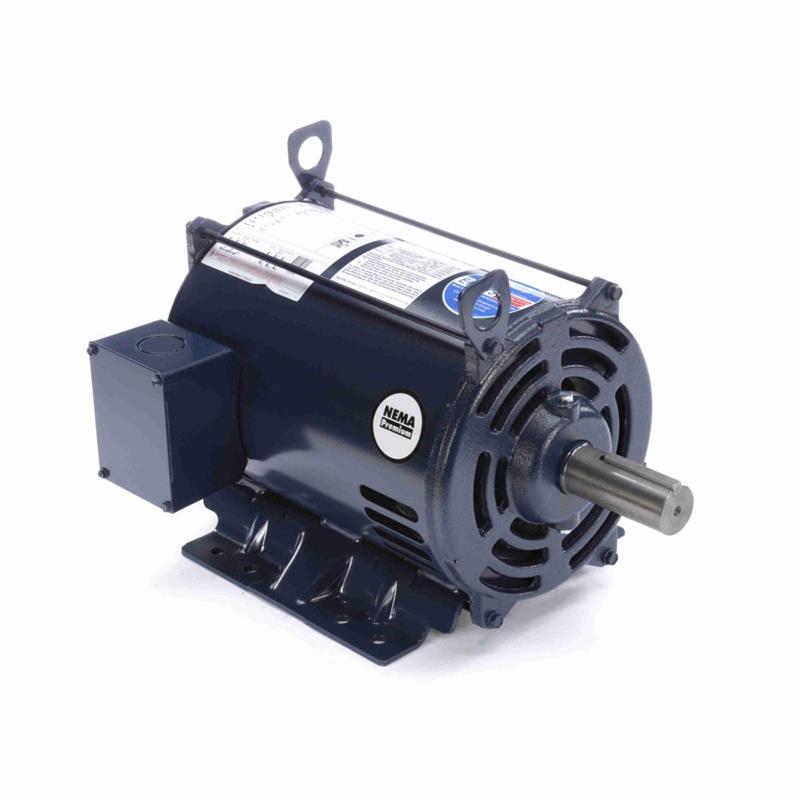

E397M2 Century Motor General Purpose Motor (10HP, 3 Phase, 230/460V)
E397M2 Century Motor General Purpose Motor (10HP, 3 Phase, 230/460V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:E397M2
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
E397M2 Century Motor General Purpose Motor (10HP, 3 Phase, 230/460V)
Electrical Type Three Phase
HP 10.0
KW 7.5
Frame S215T
Enclosure Drip Proof
Phase Three
Voltage 230/460
Rotation Counterclockwise
Overload None
Material Rolled Steel
Bearings Type Ball / Ball
Mounting Rigid Base
Amperage 25.2/12.6
Bearings SE Type Ball
Shaft Type Keyed
Bearings OSE Type Ball
Shaft Extension 3.500"
Shaft Diameter 1.375
Bearings DE Type Ball
Bearings ODE Type Ball
Length 22.00
Width 15.25"
Height 13.38"
Weight 129.00
Country of Origin Mexico
Meets or exceeds all USA mandated efficiencies
Rolled steel construction
6:1 Variable Torque
60/50 Hz (50Hz @ next lower HP, 1.15 SF)
