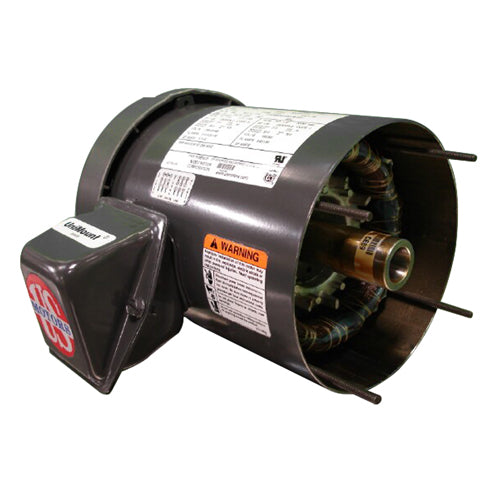

E190PE US Motor Motor Module (2HP, 1750 RPM, TEFC, 3 Phase, 208-230/460V)
E190PE US Motor Motor Module (2HP, 1750 RPM, TEFC, 3 Phase, 208-230/460V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:E190PE
Precio habitual
$533.55 USD
Precio habitual
$0.00 USD
Precio de oferta
$533.55 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
E190PE US Motor Motor Module (2HP, 1750 RPM, TEFC, 3 Phase, 208-230/460V)
| Model_Number: | FN99 |
| Catalog | E190PE |
| PRODUCT NAME: | 2 HP - TEFC - 1750 |
| PHASETYPE: | 3_PHASE |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | 2 |
| KILOWATTS: | 1.5 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1750 |
| RPM 2: | 1750 |
| RPM 3: | 1735 |
| RPM 4: | 1435 |
| RPM 5: | 1435 |
| HERTZ: | 60 |
| HERTZ 2: | 50 |
| VOLTS PRIMARY: | 208-230/460 |
| VOLTS : | 460 |
| VOLTS 2: | 230 |
| VOLTS 3: | 208 |
| VOLTS 4: | 380 |
| VOLTS 5: | 190 |
| FRME : | 145 |
| SHAFT CODE: | T |
| ASSEMBLY POSITION: | NA |
| MOTOR TYPE: | UTEP |
| OPPOSITE END BEARING: | 6203-2Z-J/C3 |
| SHAFT END BEARING: | - |
| AMBIENT: | 40 |
| ROTATION: | DUAL |
| SERVICE FACTOR: | 1.25 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 63 |
| BREAKDOWN TORQUE: | 505 |
| BREAKDOWN TORQUE UOM: | PERCENT OF FLT |
| LOCKED ROTOR TORQUE: | 395 |
| LOCKED ROTOR TORQUE UOM: | PERCENT OF FLT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | M |
| LOCKED ROTOR AMPS: | 26.2 |
| NEMA NOMINAL EFFICIENCY: | 86.5 |
| FULL LOAD AMPS PRIMARY: | 5.9-5.7/2.8 |
| SERVICE FACTOR AMPS PRIMARY: | 0-6.7/3.3 |
