U.S. Motors

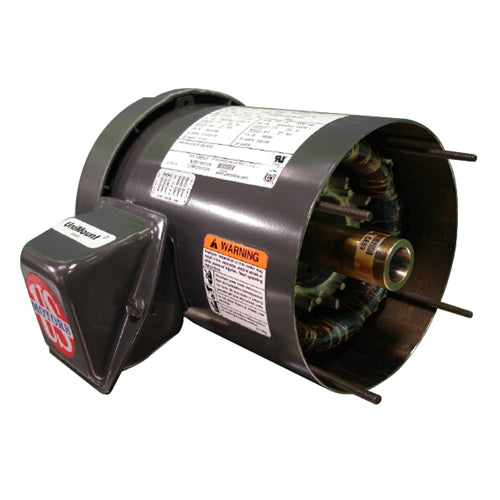

E183 U.S. Motor Electric Motor (CE88, 3/4 HP, TEFC, 1435 rpm-1750 RPM, 3 Phase, 208-230/460 V, 56 Frame)
E183 U.S. Motor Electric Motor (CE88, 3/4 HP, TEFC, 1435 rpm-1750 RPM, 3 Phase, 208-230/460 V, 56 Frame)
[COUNT] shoppers are looking at this right now
No reviews
SKU:E183
Precio habitual
$381.52 USD
Precio habitual
$0.00 USD
Precio de oferta
$381.52 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
E183 U.S. Motor Electric Motor (CE88, 3/4 HP, TEFC, 1750 RPM, 3 Phase, 208-230/460 V, 56 Frame, Special Mount, Continuous Duty,
APPLICATIONS: For use on U .S . MOTORS gear reducers with tapered input shafts.
FEATURES: • Class F Insulation • Design B • Will Accept SHUR STOP Brake Kits • 208v will not be marked on DOE regulated spread-voltage motors.
| Part Number | E183 |
|---|---|
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Description | Motor, 3/4 HP, 1800 RPM, 56 |
| Type | Motor Modules |
| Horsepower | 3/4 hp |
| Kilowatts | 0.6 kW |
| RPM | 1,750 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 56 |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting Type | Foot Mount |
| Full Load Current | 1.4 A, 2.7-2.8 A |
| Composition | Rolled Steel |
