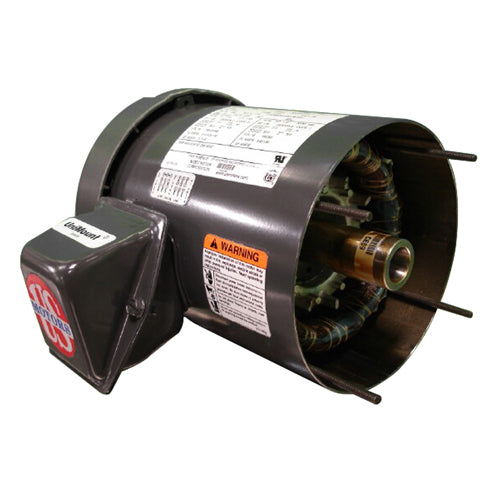

E177 U.S. Motor (1/3 HP, 56 Frame, UTP)
E177 U.S. Motor (1/3 HP, 56 Frame, UTP)
No reviews
SKU:E177
Precio habitual
$222.60 USD
Precio habitual
Precio de oferta
$222.60 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
US Motors E177 U.S. Gear Motor - 1/3 HP, 56 Frame, UTP,
Please call to request more information about this U.S. Gear Motor/Module 1800-223-4898.
Please call to request more information about this U.S. Gear Motor/Module 1800-223-4898.
| Model_Number: | CE86 |
| Cat # | E177 |
| PRODUCT NAME: | .33 HP - TE - 1750 |
| PHASETYPE: | 3_PHASE |
| MOTOR ENCLOSURE: | TE |
| HORSEPOWER: | .33 |
| KILOWATTS: | 0.2 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1750 |
| RPM 2: | 1750 |
| RPM 3: | 1735 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 208-230/460 |
| VOLTS : | 460 |
| VOLTS 2: | 230 |
| VOLTS 3: | 208 |
| FRME : | 56 |
| MOTOR TYPE: | UTP |
| OPPOSITE END BEARING: | 6203-2Z-J/C3 |
| AMBIENT: | 40 |
| ROTATION: | DUAL |
| SERVICE FACTOR: | 1.25 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 21 |
| BREAKDOWN TORQUE: | 375 |
| BREAKDOWN TORQUE UOM: | PERCENT OF FLT |
| LOCKED ROTOR TORQUE: | 264 |
| LOCKED ROTOR TORQUE UOM: | PERCENT OF FLT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | K |
| LOCKED ROTOR AMPS: | 3.6 |
| NEMA NOMINAL EFFICIENCY: | 75.5 |
| FULL LOAD AMPS PRIMARY: | 1.2-1.2/0.6 |
| SERVICE FACTOR AMPS PRIMARY: | 0-1.3/0.7 |
