Model_Number: FM31 PRODUCT NAME: 10 HP - ODP - 1765 PHASETYPE: 3_PHASE MOTOR ENCLOSURE: ODP HORSEPOWER: 10 KILOWATTS: 7.5 POLES: 4 NUMBER SPEEDS: 1 RPM: 1765 RPM 2: 1765 RPM 3: 1755 RPM 4: 1455 RPM 5: 1455 HERTZ: 60 HERTZ 2: 50 VOLTS PRIMARY: 208-230/460 VOLTS : 460 VOLTS 2: 230 VOLTS 3: 208 VOLTS 4: 380 VOLTS 5: 190 FRME : 215 SHAFT CODE: JP MOUNTING: HORZ-FOOTED ASSEMBLY POSITION: F1 MOTOR TYPE: DE1 OPPOSITE END BEARING: 6205-2Z-J/C3 SHAFT END BEARING: 6309-2Z-J/C3 AMBIENT: 40 SERVICE FACTOR: 1.15 STARTCAPMFD: N\A SHIPPING WEIGHT: 105 BREAKDOWN TORQUE: 316 BREAKDOWN TORQUE UOM: PERCENT OF FLT LOCKED ROTOR TORQUE: 246 LOCKED ROTOR TORQUE UOM: PERCENT OF FLT INSULATION CLASS: F KVA CODE LETTER: H LOCKED ROTOR AMPS: 84 NEMA NOMINAL EFFICIENCY: 91.7 FULL LOAD AMPS PRIMARY: 26.3-23.8/11.9 SERVICE FACTOR AMPS PRIMARY: 0-27.2/13.6
U.S. Motors

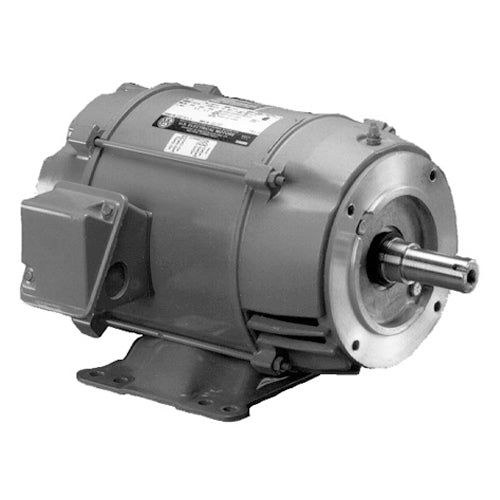

DJ10P2DP US Motor Special Application Close Coupled Pump Motor (10 HP, ODP, 1765 RPM, 3 Phase, JP Shaft)
DJ10P2DP US Motor Special Application Close Coupled Pump Motor (10 HP, ODP, 1765 RPM, 3 Phase, JP Shaft)
[COUNT] shoppers are looking at this right now
No reviews
SKU:DJ10P2DP
Precio habitual
$928.74 USD
Precio habitual
$0.00 USD
Precio de oferta
$928.74 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
DJ10P2DP US Motor Special Application Close Coupled Pump Motor (10 HP, ODP, 1765 RPM, 3 Phase, JP Shaft)
Compartir
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
