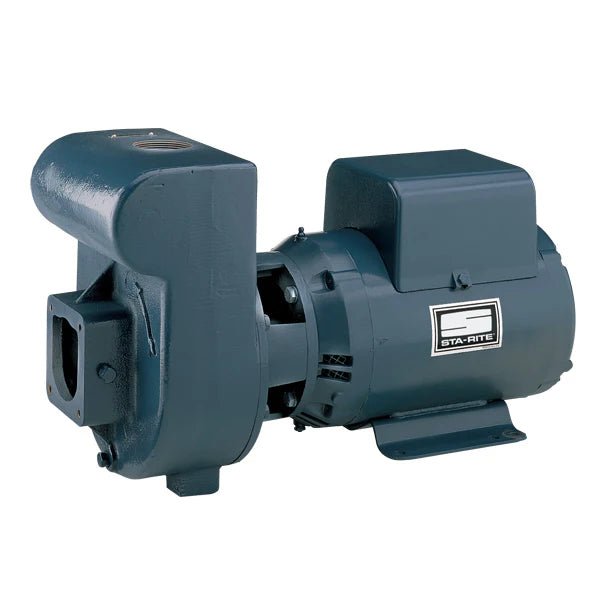

DHE3-50 Sta-Rite Self Priming Centrifugal Pump (1 HP, 3 Phase, 208-230/460 Voltage, 1-1/2" Pump Discharge, High Head)

Sta-Rite DHE3-50, Self-priming centrifugal pumps Type, D Series, 1 HP, 3 Phase, 208-230/460 Voltage, 1-1/2" Pump Discharge, High Head Model,

Applications
Sta-Rite D Series, Self-Priming Centrifugal Pumps. Available in high head or medium head series. Feature leak-proof mechanical seals, easy service design, heavy-duty motors, rugged construction. Applications include: Lawn Sprinkling, Contractors, Agriculture & Industrial.
Features
1 through 5 HP: Both high head and medium head models offer heavy-duty motors, easy service design, and air volume control tapping.
Drain Port: Provided for easy winterizing.
Medium Head Models: Deliver up to 115' of head with capacities to 159 GPM.
High Head Models: Deliver up to 138' of head with capacities to 162 GPM.
Easy Serviceability: Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting.
Heavy-Duty Motors: Designed for continuous operation. Capacitor start, will not cause electrical interference with TV or other appliances. Nationally known motors have ball bearing, stainless steel shaft. For single- and three-phase operation, 3450 RPM.
Drain port provided for easy winterizing

Specifications
Brand	Sta-Rite
Catalog Number	DHE3-50
Type	Self-priming centrifugal pumps
Series	D
HP	1
Phase	3
Voltage	208-230/460
Suction Flanges	PKG 52
Pump Discharge	1-1/2"
Model	High Head
Material	Cast Iron
RPM	3450
