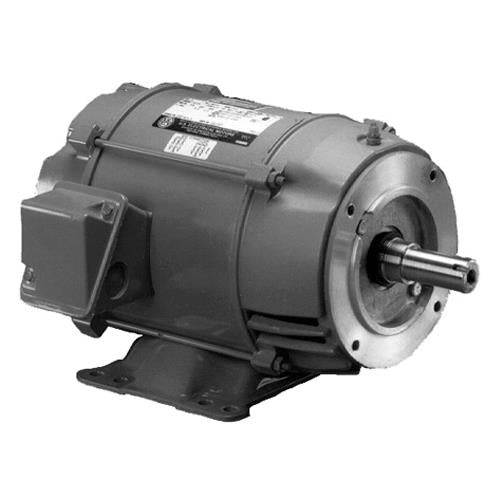

D7P2DC U.S. Motors General Purpose Motor (7 1/2 HP, 213TC Frame, Three Phase, 1800 RPM)
D7P2DC U.S. Motors General Purpose Motor (7 1/2 HP, 213TC Frame, Three Phase, 1800 RPM)
SKU:D7P2DC
Precio habitual
$809.40 USD
Precio habitual
Precio de oferta
$809.40 USD
Precio unitario
/
por
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
US Motors Emerson D7P2DC, HP: 7 1/2, RPM: 1800, Volts: 208-230/460, Motor Mount: Footed, Frame: 213TC, SF: 1.15, Phase: Three, Enclosure: ODP, Fans, Compressors, Pumps
Applications |
For use on pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal. |
Features |
Class F Insulation, Class B Rise at Service Factor (140 Frame & Larger), Rolled Steel Frame 56-320, Cast Iron Frame 360-440, Aluminum End Shields 56-250, Cast Iron End, "CE" Mark on Nameplate (140 Frame & Larger), Full 50 & 60 Hertz Operating Data on Nameplate (140 Frame & Larger), 40C Ambient, NEMA Design B Performance On 60 Hz SineWave Power, Full HP @ 50 Hz, Regreasable Bearings 250 Frame & Up, Double Shielded Bearings 48-400, Bearing Cap On 440 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, F1 Assembly Position, Lifting Provisions 210 Frame & Up |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Premium Efficient General Purpose Industrial C-Face Motor |
Model Number |
D7P2DC |
HP |
7 1/2 |
RPM |
1800 |
Volts |
208-230/460 |
Motor Mount |
Footed |
Frame |
213TC |
Full Load Amps |
20.2-18.5/9.3 |
Full Load Efficiency |
91 |
Apx. Wt. (lb) |
90 |
SF |
1.15 |
Phase |
Three |
Length |
17 |
Enclosure |
ODP |
Type |
General Purpose Industrial C-Face Motor |
