U.S. Motors

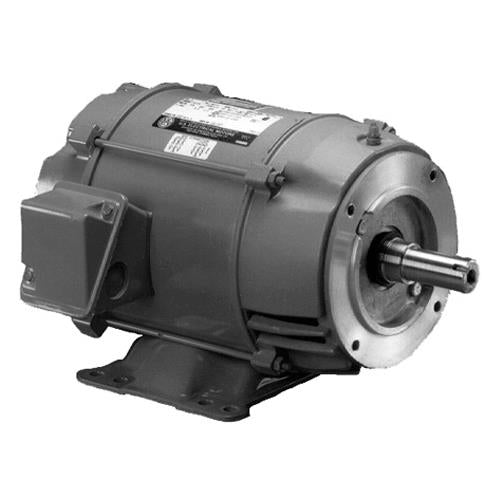

D7P1DC U.S. Motors General Purpose Motor (7 1/2 HP, 184TC Frame, Three Phase, 3600 RPM)

D7P1DC U.S. Motors General Purpose Motor (7 1/2 HP, 184TC Frame, Three Phase, 3600 RPM)

[COUNT] shoppers are looking at this right now

D7P1DC

$762.75 USD
$0.00 USD $762.75 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

US Motors Emerson D7P1DC, HP: 7 1/2, RPM: 3600, Volts: 208-230/460, Motor Mount: Footed, Frame: 184TC, SF: 1.15, Phase: Three, Enclosure: ODP, Fans, Compressors, Pumps

Applications
For use on pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.
Features
Class F Insulation, Class B Rise at Service Factor (140 Frame & Larger), Rolled Steel Frame 56-320, Cast Iron Frame 360-440, Aluminum End Shields 56-250, Cast Iron End, "CE" Mark on Nameplate (140 Frame & Larger), Full 50 & 60 Hertz Operating Data on Nameplate (140 Frame & Larger), 40C Ambient, NEMA Design B Performance On 60 Hz SineWave Power, Full HP @ 50 Hz, Regreasable Bearings 250 Frame & Up, Double Shielded Bearings 48-400, Bearing Cap On 440 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, F1 Assembly Position, Lifting Provisions 210 Frame & Up

Tech Specs.

Brand
U.S. Motors/Emerson Premium Efficient General Purpose Industrial C-Face Motor
Model Number
D7P1DC
HP
7 1/2
RPM
3600
Volts
208-230/460
Motor Mount
Footed
Frame
184TC
Full Load Amps
20.3-18.1/9.1
Full Load Efficiency
88.5
Apx. Wt. (lb)
60
SF
1.15
Phase
Three
Length
16
Enclosure
ODP
Type
General Purpose Industrial C-Face Motor
