U.S. Motors

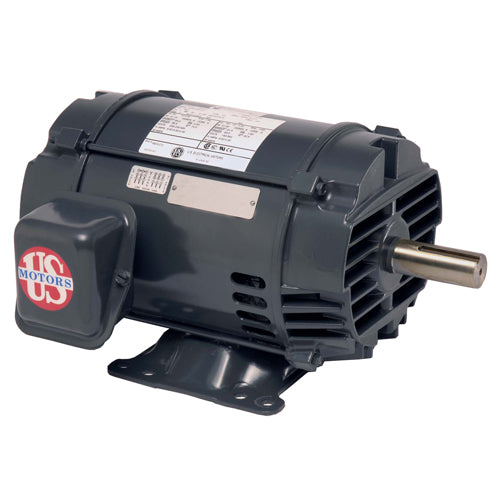

D5PA2A US-Nidec General Purpose Motor (5 HP, 3 Phase, 1755 RPM, 184T Frame, ODP Enclosure, 208-230/460 Volt, Rolled Steel, 1 Speed, F1, Footed)
D5PA2A US-Nidec General Purpose Motor (5 HP, 3 Phase, 1755 RPM, 184T Frame, ODP Enclosure, 208-230/460 Volt, Rolled Steel, 1 Speed, F1, Footed)
[COUNT] shoppers are looking at this right now
No reviews
SKU:D5PA2A
Precio habitual
$714.88 USD
Precio habitual
Precio de oferta
$714.88 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
D5PA2A US-Nidec General Purpose Motor (5 HP, 3 Phase, 1755 RPM, 184T Frame, ODP Enclosure, 208-230/460 Volt, Rolled Steel, 1 Speed, F1, Footed)
| Phase | Three |
|---|---|
| Electrical Type | Three Phase |
| HP | 5 |
| KW | 3.7 |
| RPM | 1755 |
| Frame | 184T |
| Enclosure | ODP |
| Voltage | 208-230/460 |
| Rotation | REV |
| Overload Protection | None |
| Shaft Type | Single |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
| Speeds | 1 |
| Amperage | 13 .8-12 .6/6 .3 |
| Service Factor | 1.15 |
| Efficiency | 89.50% |
| Mounting Type | Horizontal / Footed |
| Assembly | F1 |
| Frequency | 60 HZ |
Compartir
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
