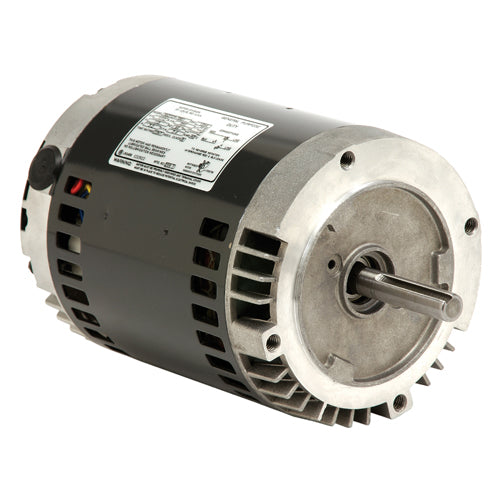

D32CP2PCR US Motor General Purpose Motor (1.5HP, ODP, 1725 RPM)
D32CP2PCR US Motor General Purpose Motor (1.5HP, ODP, 1725 RPM)
SKU:D32CP2PCR
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Model_Number: T063CRM2197012B
Cat # D32CP2PCR
PRODUCT NAME: 1.5 HP - ODP - 1725
PHASETYPE: 1_CAPACITOR START -
MOTOR ENCLOSURE: ODP
HORSEPOWER: 1.5
KILOWATTS: 1.1
POLES: 4
NUMBER SPEEDS: 1
RPM: 1725
HERTZ: 60
VOLTS PRIMARY: 115/230 V
VOLTS : 115
VOLTS 2: 230
FRME : 56
SHAFT CODE: H
STATOR DIAMETER: 6.3
STACK: 3.75
MOUNTING: NONE
MOTOR TYPE: FHP
OPPOSITE END BEARING: 6203
SHAFT END BEARING: 6203
AMBIENT: 40
ROTATION: CW/CCW
SERVICE FACTOR: 1.15
RUNCAPMFD: 65
RUNCAPVOLTS: 240
STARTCAPMFD: 649
SHIPPING WEIGHT: 37
THERMAL PROTECTION: NONE
BREAKDOWN TORQUE: 196.6
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 270
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
KVA CODE LETTER: J
LOCKED ROTOR AMPS: 85.86
NEMA NOMINAL EFFICIENCY: 83.8
FULL LOAD AMPS PRIMARY: 13.4/6.7
SERVICE FACTOR AMPS PRIMARY: 14.6/7.3
