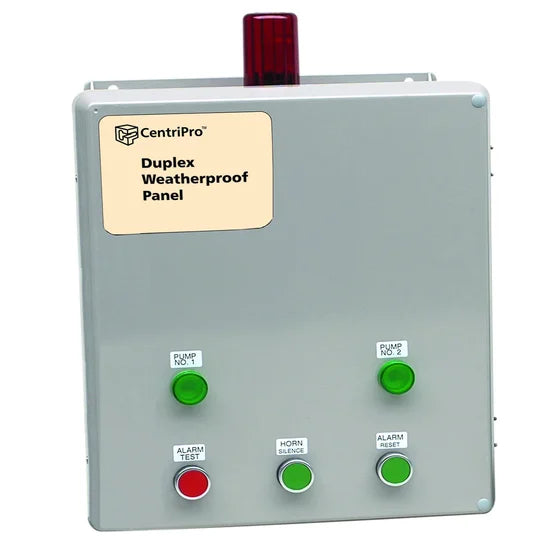

Goulds Centripro D31016P, Weatherproof Duplex Control Panel with Seal Fail and High Temp Circuit, 208/230/460/575 Volts, 10-16 Amp Range, 3 Phase, Indoor/Outdoor NEMA 4X Fiberglass Enclosure

Goulds Centripro SES Duplex Control Panel (3 Phase)

This is a weatherproof, duplex control panel for providing fully automatic operation for two pumps. An Electrical Alternator is used on a duplex pump application where automatic electrical cycling of the pump is desired for added protection in residential or commercial applications. With one pump operating to handle normal flow, a second pump becomes operational in the event the water level continues to rise.

Features

Rugged NEMA 4X, fiberglass enclosure with gasketed, hinged door, stainless steel hardware, 30 watt, flashing red light, and 95db alarm horn withstands even the most severe weather conditions and prevents corrosion
Three phase. Field adjustable for 208/230 /460/575V, 60 Hz
115V control circuit transformer
2 adjustable motor overload protectors. Heaters not required
Solid state electronic pump alternator circuit displays float status for ease of installation and trouble shooting
Alternator selector switch for maintenance on one or both pumps
Accepts single or dual power feed
2 hand-off-automatic (H-O-A) pump switches
On-off control circuit switch
2 oversized magnetic contactors
Numbered terminal strip-screw type
Lag pump start delay delays starting lag pump for 5 seconds if both pumps attempt to start simultaneously as after a power outage
Hinged door with lockable stainless steel latch for safe operation indoors or out
High-level alarm circuit includes through-door mounted silence switch for manual silence of alarm horn
Through-door mounted alarm test switch insures proper operation of the alarm circuit without the need to open the panel
Two through-door mounted pump run lights
Top-mounted high intensity flashing red light provides 360° visibility
This duplex control is factory wired for operation with three float bulbs. An easy field modification for four float bulb operation using separate “lag-on” and “alarm bulbs” is provided
Panel can be wired for a single power feed for pumps and control circuit or the control circuit can be wired to a separate power supply to insure alarm integrity in case of a tripped main breaker
Auxiliary alarm contacts provided for remote alarm connection
Color coded wiring, screw type terminals and plug in sockets, ensure ease of field servicing
Entire unit is UL and CUL listed

Application

Sump
Effluent
Sewage
Water transfer
