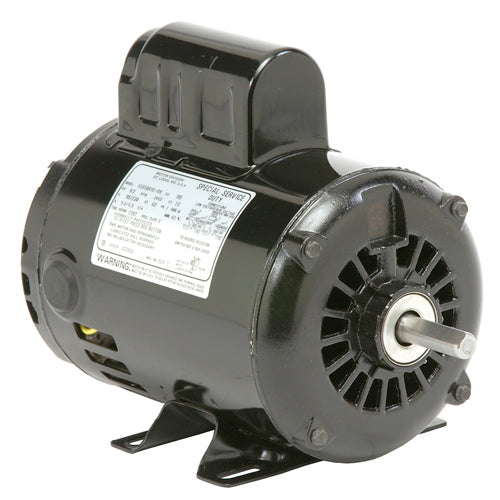

D2C2J14 Nidec U.S. Motors General Purpose Motor (2 HP, 115/208-230 Volt, 60 Hz, 145T Frame, ODP Enclosure, 1800 RPM, Rigid Base, Capacitor Start Capacitor Run)
D2C2J14 Nidec U.S. Motors General Purpose Motor (2 HP, 115/208-230 Volt, 60 Hz, 145T Frame, ODP Enclosure, 1800 RPM, Rigid Base, Capacitor Start Capacitor Run)
[COUNT] shoppers are looking at this right now
No reviews
SKU:D2C2J14
Precio habitual
$919.16 USD
Precio habitual
$0.00 USD
Precio de oferta
$919.16 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
US Motors Emerson D2C2J14, HP: 2, RPM: 1800, Volts: 115/208-230, Frame: 145T, "C" Dim. : 13.75, Speed: Single, Motor Mount : Rigid Base , Enclosure: ODP, Notes: Capacitor Start , Blowers, pumps
| Applications |
| For air compressors, pumps, conveyors, blowers and general industrial equipment |
| Features |
| Double Shielded Ball Bearings; Rigid Base Standard; Class B Insulation; Continuous Duty; 40C Ambient; F1 Assembly; Reversible Rotation |
|
Tech Specs. |
|
|
Brand
|
U.S. Motors/Emerson General Purpose Single Phase Motor
|
|
Model Number
|
D2C2J14
|
|
HP
|
2
|
|
RPM
|
1800
|
|
Volts
|
115/208-230
|
|
SF
|
1.15
|
|
Frame
|
145T
|
|
Full Load Amps
|
20.0/11.3-10.0
|
|
"C" Dim.
|
13.75
|
|
Apx. Wt. (lb)
|
42
|
|
Speed
|
Single
|
|
Phase
|
Single
|
|
Motor Mount
|
Rigid Base
|
|
Enclosure
|
ODP
|
|
Type
|
General Purpose Single Phase Motor
|
|
Rotation
|
Reversible
|
|
Notes
|
Capacitor Start
|
|
|
|
|
|
|
|
|
|
