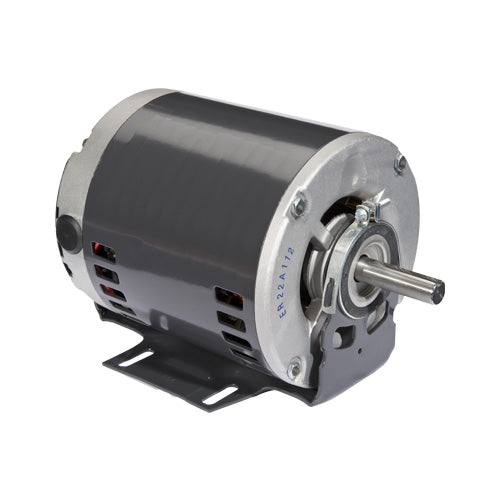

D1P2DH9 US Motor General Purpose Motor (1 HP, ODP, 3 Phase, 1725 RPM, 208-230/460 V, 56 Frame)
D1P2DH9 US Motor General Purpose Motor (1 HP, ODP, 3 Phase, 1725 RPM, 208-230/460 V, 56 Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:D1P2DH9
Precio habitual
$466.28 USD
Precio habitual
$0.00 USD
Precio de oferta
$466.28 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
D1P2DH9 US Motor General Purpose Motor (1 HP, ODP, 3 Phase, 1725 RPM, 208-230/460 V, 56 Frame)
| Model_Number: | P063FWW1316015B |
| PRODUCT NAME: | 1 HP - ODP - 1725 |
| PHASETYPE: | 3_POLYPHASE |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 1 |
| KILOWATTS: | 0.8 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 208-230/460 V |
| VOLTS : | 208 |
| VOLTS 2: | 230 |
| VOLTS 3: | 460 |
| FRME : | 56 |
| SHAFT CODE: | H |
| STATOR DIAMETER: | 6.3 |
| STACK: | 2.125 |
| MOUNTING: | CRADLE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | REVERSIBLE |
| SERVICE FACTOR: | 1.15 |
| SHIPPING WEIGHT: | 32 |
| THERMAL PROTECTION: | NONE |
| BREAKDOWN TORQUE: | 203.4 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 141.4 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | K |
| LOCKED ROTOR AMPS: | 20.09 |
| NEMA NOMINAL EFFICIENCY: | 83.5 |
| FULL LOAD AMPS PRIMARY: | 3.2-3.0/1.5 |
| SERVICE FACTOR AMPS PRIMARY: | 3.8-3.6/1.8 |
