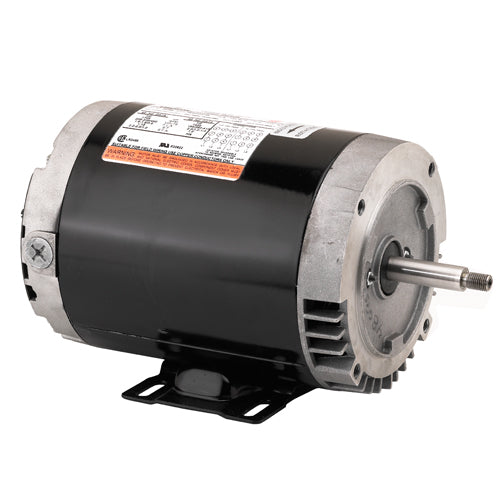

D1CPM2PH US Motor General Purpose Motor (1 HP, ODP, 1725 RPM, 115/230V, 56 Frame)
D1CPM2PH US Motor General Purpose Motor (1 HP, ODP, 1725 RPM, 115/230V, 56 Frame)
[COUNT] shoppers are looking at this right now
No reviews
SKU:D1CPM2PH
Precio habitual
$656.31 USD
Precio habitual
$0.00 USD
Precio de oferta
$656.31 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
D1CPM2PH US Motor General Purpose Motor (1 HP, ODP, 1725 RPM, 115/230V, 56 Frame)
| Model_Number: | T063CNN2153012B |
| Catalog # | D1CPM2PH |
| PRODUCT NAME: | 1 HP - ODP - 1725 |
| PHASETYPE: | 1_CAPACITOR START - |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 1 |
| KILOWATTS: | 0.8 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115/230 V |
| VOLTS : | 115 |
| VOLTS 2: | 230 |
| FRME : | 56 |
| SHAFT CODE: | H |
| STATOR DIAMETER: | 6.3 |
| STACK: | 2.75 |
| MOUNTING: | RIGID |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | CW/CCW |
| SERVICE FACTOR: | 1.15 |
| RUNCAPMFD: | 70 |
| RUNCAPVOLTS: | 280 |
| STARTCAPMFD: | 709 |
| SHIPPING WEIGHT: | 31 |
| THERMAL PROTECTION: | MANUAL RESET |
| BREAKDOWN TORQUE: | 117.7 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 217.4 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | J |
| LOCKED ROTOR AMPS: | 67.56 |
| NEMA NOMINAL EFFICIENCY: | 82.6 |
| FULL LOAD AMPS PRIMARY: | 8.8/4.4 |
| SERVICE FACTOR AMPS PRIMARY: | 9.2/4.6 |
