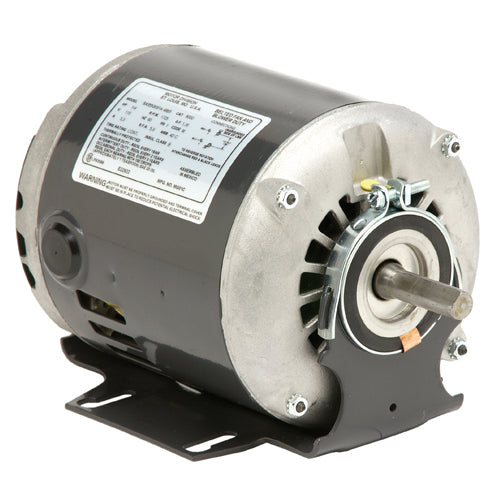

D16B2N4Z9 US Motors General Purpose Motor (1/6 HP, ODP, 1725 RPM, 1 Phase, 115V, 48Z Frame)
D16B2N4Z9 US Motors General Purpose Motor (1/6 HP, ODP, 1725 RPM, 1 Phase, 115V, 48Z Frame)
No reviews
SKU:D16B2N4Z9
Precio habitual
$145.33 USD
Precio habitual
Precio de oferta
$145.33 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
D16B2N4Z9 US Motors General Purpose Motor (1/6 HP, ODP, 1725 RPM, 1 Phase, 115V, 48Z Frame)
| Model_Number: | S055SFD8353012B |
| Catalog # | D16B2N4Z9 |
| PRODUCT NAME: | .167 HP - ODP - 1725 |
| PHASETYPE: | 1_SPLIT PHASE |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | .167 |
| KILOWATTS: | 0.1 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115 V |
| VOLTS : | 115 |
| FRME : | 48 |
| SHAFT CODE: | Z |
| STATOR DIAMETER: | 5.5 |
| STACK: | 1.25 |
| MOUNTING: | CRADLE/STUD |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | CW/CCW |
| SERVICE FACTOR: | 1.35 |
| SHIPPING WEIGHT: | 12 |
| THERMAL PROTECTION: | NONE |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | T |
| FULL LOAD AMPS PRIMARY: | 4.2 |
| SERVICE FACTOR AMPS PRIMARY: | 4.4 |
