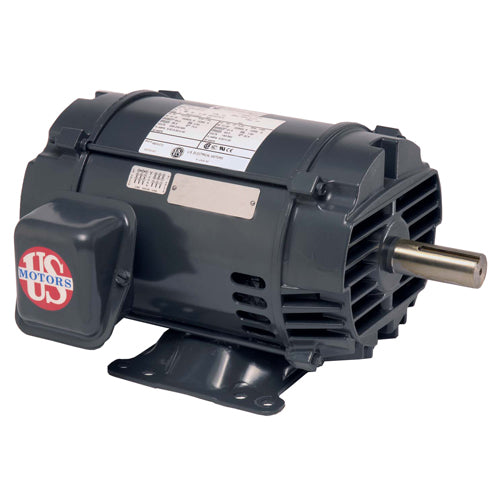

D150P2FS U.S. Motors General Purpose Motor (150 HP, 444TS Frame, Three Phase, 1800 RPM)

D150P2FS U.S. Motors General Purpose Motor (150 HP, 444TS Frame, Three Phase, 1800 RPM)

D150P2FS

$10,089.76 USD
$10,089.76 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson D150P2FS, HP: 150, RPM: 1800, Volts: 460, "C" Dim: 34, Frame: 444TS, SF: 1.15, Phase: Three, Motor Mount: Foot Mounted , Enclosure: ODP, Fans, Compressors, Pumps

Applications
For use in pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.
Features
Class F Insulation, Class B Rise At Service Factor, Rolled Steel Frame 56-320, Cast Iron Frame 360-440, Aluminum End Shields 56-250, Cast Iron End Shields 280-440, CE Mark on Nameplate (140 Frame & Larger), 40C Ambient, NEMA Design B Performance On 60 Hz Sine Wave Power, 1.15 Service Factor, Regreasable Bearings 180 Frame & Up, Double Shielded Bearings 140-400, Open On 440, Bearing Caps On 400 & 440 Frames, F1 Assembly Position except where noted, Lifting Provisions 210 Frame & Up

Tech Specs.

Brand
U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor
Model Number
D150P2FS
HP
150
RPM
1800
Volts
460
"C" Dim
34
Frame
444TS
Full Load Amps
168
Full Load Efficiency
95.8
Apx. Wt. (lb)
1100
SF
1.15
Phase
Three
Motor Mount
Foot Mounted
Enclosure
ODP
Type
General Purpose Industrial Motor
