U.S. Motors

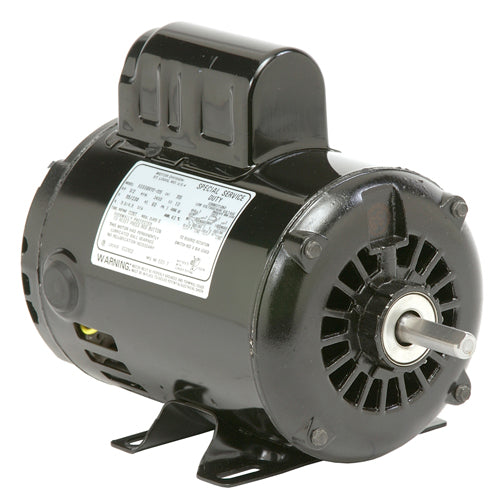

D13CPM2P US Motor General Purpose Motor (0.33 HP, ODP, 56 Frame, 1725 RPM, 115/208-230 V)
D13CPM2P US Motor General Purpose Motor (0.33 HP, ODP, 56 Frame, 1725 RPM, 115/208-230 V)
[COUNT] shoppers are looking at this right now
SKU:D13CPM2P
Precio habitual
$465.91 USD
Precio habitual
$0.00 USD
Precio de oferta
$465.91 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
D13CPM2P US Motor (0.33 HP - ODP - 1725 RPM)
| Model_Number: | T055CPA1506012B |
| PRODUCT NAME: | .33 HP - ODP - 1725 |
| PHASETYPE: | 1_CAPACITOR START - |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | .33 |
| KILOWATTS: | 0.3 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115/208-230 V |
| VOLTS : | 115 |
| VOLTS 2: | 208 |
| VOLTS 3: | 230 |
| FRME : | 56 |
| STATOR DIAMETER: | 5.5 |
| STACK: | 1.75 |
| MOUNTING: | RIGID BASE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | CCW LEAD END REV |
| SERVICE FACTOR: | 1.35 |
| RUNCAPMFD: | 25 |
| RUNCAPVOLTS: | 370 |
| STARTCAPMFD: | 238 |
| SHIPPING WEIGHT: | 16 |
| THERMAL PROTECTION: | MANUAL RESET |
| BREAKDOWN TORQUE: | 50.1 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 72.71 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | K |
| LOCKED ROTOR AMPS: | 24.73 |
| NEMA NOMINAL EFFICIENCY: | 72.4 |
| FULL LOAD AMPS PRIMARY: | 3.9/2.0-1.9 |
| SERVICE FACTOR AMPS PRIMARY: | 4.6/2.4-2.3 |
