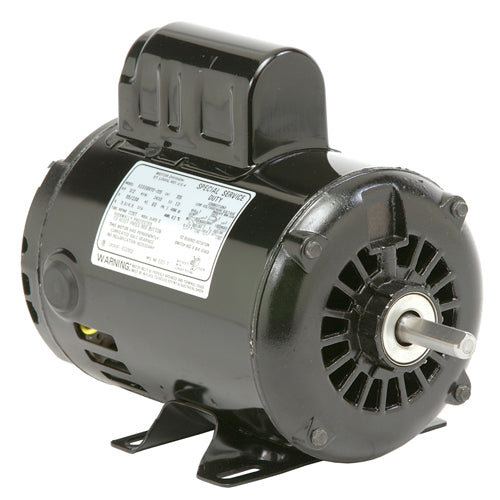

D13CP2P US Motor Capacitor Start Capacitor Run Motor (0.33 HP, ODP, 1725 RPM, 56 Frame)
D13CP2P US Motor Capacitor Start Capacitor Run Motor (0.33 HP, ODP, 1725 RPM, 56 Frame)
SKU:D13CP2P
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Model_Number: T055CNT1500012B
PRODUCT NAME: .33 HP - ODP - 1725
PHASETYPE: 1_CAPACITOR START -
MOTOR ENCLOSURE: ODP
HORSEPOWER: .33
KILOWATTS: 0.3
POLES: 4
NUMBER SPEEDS: 1
RPM: 1725
RPM 2: 1425
HERTZ: 60
HERTZ 2: 50
VOLTS PRIMARY: 115/230 & 110/220 V
VOLTS : 115
VOLTS 2: 230
VOLTS 3: 110
VOLTS 4: 220
FRME : 56
STATOR DIAMETER: 5.5
STACK: 1.75
MOUNTING: RIGID BASE
MOTOR TYPE: FHP
OPPOSITE END BEARING: 6203
SHAFT END BEARING: 6203
AMBIENT: 40
ROTATION: CCW LEAD END REV
SERVICE FACTOR: 1.35
RUNCAPMFD: 25
RUNCAPVOLTS: 370
STARTCAPMFD: 238
SHIPPING WEIGHT: 16
BREAKDOWN TORQUE: 50.1
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 72.71
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
KVA CODE LETTER: K
LOCKED ROTOR AMPS: 24.73
NEMA NOMINAL EFFICIENCY: 72.4
FULL LOAD AMPS PRIMARY: 3.9/1.9 & 4.8/2.5
SERVICE FACTOR AMPS PRIMARY: 4.6/2.3
