U.S. Motors

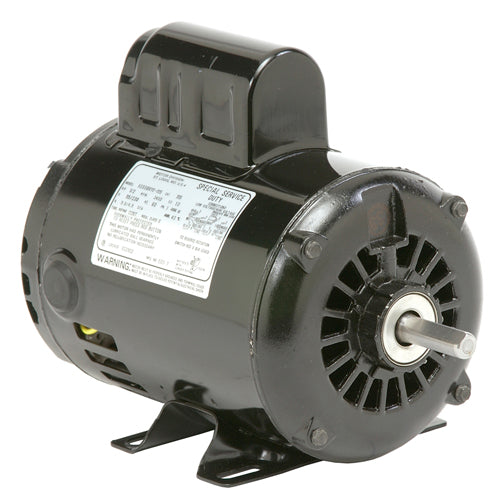

D12CP2P US Motor Capacitor Start Capacitor Run General Purpose Motor (1/2 HP, ODP, 1725 RPM, Single Phase, Rigid Base, 115/230 Volt, 56 Frame, 5.0/2.6 Full Load Amps, CW/CCW Rotation)
D12CP2P US Motor Capacitor Start Capacitor Run General Purpose Motor (1/2 HP, ODP, 1725 RPM, Single Phase, Rigid Base, 115/230 Volt, 56 Frame, 5.0/2.6 Full Load Amps, CW/CCW Rotation)
[COUNT] shoppers are looking at this right now
No reviews
SKU:D12CP2P
Precio habitual
$522.77 USD
Precio habitual
$0.00 USD
Precio de oferta
$522.77 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
D12CP2P US Motor Capacitor Start Capacitor Run General Purpose Motor (1/2 HP, ODP, 1725 RPM, 56 Frame, Single Phase, Rigid Base, 115/230 Volt, 5.0/2.6 Full Load Amps, CW/CCW Rotation)
| Phase | Single |
|---|---|
| Electrical Type | CAP START / CAP RUN |
| Capacitor Run MFD | 30.00 MFD |
| Capacitor Start MFD | 709.50 MFD |
| Capacitor Run Voltage | 370 V |
| HP | 1/2 |
| KW | 0.4 |
| Stack | 2.5"" |
| RPM | 1725 |
| Frame | 56 |
| Diameter | 6.5"" |
| Enclosure | ODP |
| Voltage | 115/230 |
| Rotation | REV |
| Overload Protection | None |
| Shaft Type | Single |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
| Speeds | 1 |
| Amperage | 5.0/2.6 |
| Service Factor | 1.25 |
| Efficiency | 76.20% |
| Mounting Type | Rigid Base |
| Frequency | 60 HZ |
