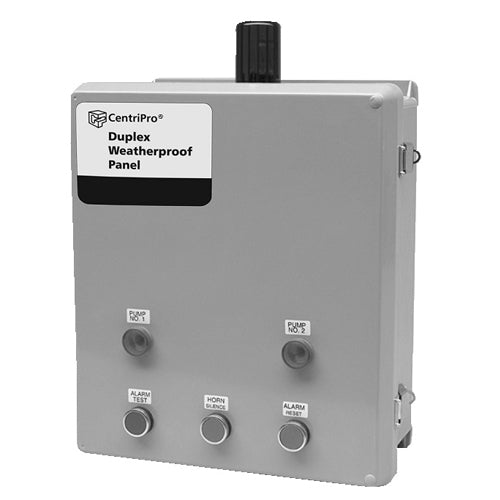

D10020 Goulds Pumps Duplex NEMA 4X Weatherproof Panel (0-20 AMPS AMP Range, Single Phase, NEMA 4X Enclosure)

Name: D10020 Goulds Pumps Duplex NEMA 4X Weatherproof Panel (0-20 AMPS AMP Range, Single Phase, NEMA 4X Enclosure)
Brand: Goulds Pumps
SKU: D10020
Price: 1807.88 USD
Availability: InStock

SKU:D10020

$1,807.88 USD

~~$2,305.00 USD~~ $1,807.88 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

Goulds Pumps D10020, Duplex NEMA 4X Weatherproof Panels , 0-20 AMPS AMP / HP Range, Single Phase, NEMA 4X Enclosure Type,

Applications
Superior quality duplex liquid-level controller, automatically controls alternation for two pump operation. High-level alarm warning designed for a variety of sump, effluent, sewage and water transfer applications.

Features
NEMA 4X, 30 watt, flashing red light and alarm horn 95db.
NEMA 4X, fiberglass enclosure with gasketed, hinged door and stainless steel hardware.
Entire unit is UL and CUL listed.
Single Phase Field adjustable for 115, 208 or 230V, 60 Hz. 2 pump circuit breakers.
Three Phase Field adjustable for 208/230 /460/575V, 60 Hz.
115V control circuit transformer.
2 adjustable motor overload protectors.
Heaters not required.
Provides fully automatic operation for two pumps.
Solid state pump alternator circuit displays float status for ease of installation and trouble shooting.
Accepts single or dual power feed.

Specifications
Brand	Goulds Pumps
Catalog Number	D10020
Type	Duplex NEMA 4X Weatherproof Panels
Series	SES
AMP / HP Range	0-20 AMPS
Phase	Single
Application	Indoor / Outdoor
Enclosure Type	NEMA 4X
Enclosure Material	Fiberglass
Hardware Material	Stainless Steel
Indicator Lights	Alarm/Run
Voltage	115, 208 or 230V
Notes	See Support Documents

Support Documents (pdf)
