U.S. Motors

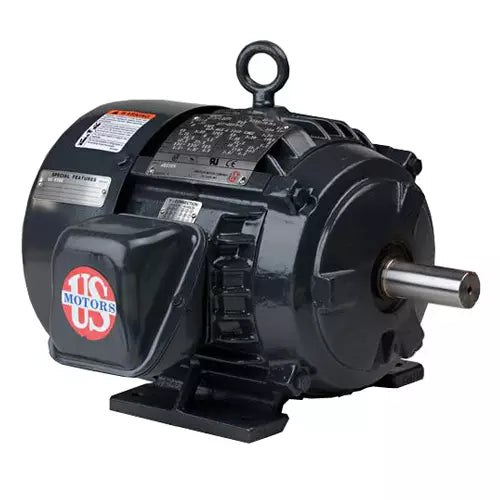

CW7V2E2 US Motor Cooling Tower Duty Motor (7.5 HP, TEFC, 1770 RPM, 230/460V)
CW7V2E2 US Motor Cooling Tower Duty Motor (7.5 HP, TEFC, 1770 RPM, 230/460V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:CW7V2E2
Precio habitual
$1,461.18 USD
Precio habitual
$0.00 USD
Precio de oferta
$1,461.18 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
CW7V2E2 US Motor Cooling Tower Duty Motor (7.5 HP, TEFC, 1770 RPM, 230/460V)
| Model_Number: | GM42 |
| Cat # | CW7V2E2 |
| PRODUCT NAME: | 7.5 HP - TEFC - 1770 |
| PHASETYPE: | 3_PHASE |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | 7.5 |
| KILOWATTS: | 5.6 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1770 |
| RPM 2: | 1770 |
| RPM 4: | 1465 |
| RPM 5: | 1465 |
| HERTZ: | 60 |
| HERTZ 2: | 50 |
| VOLTS PRIMARY: | 230/460 |
| VOLTS : | 460 |
| VOLTS 2: | 230 |
| VOLTS 4: | 400 |
| VOLTS 5: | 200 |
| FRME : | 213 |
| SHAFT CODE: | T |
| MOUNTING: | HORZ-FOOTED |
| ASSEMBLY POSITION: | F2 |
| MOTOR TYPE: | TCI |
| OPPOSITE END BEARING: | 6206-2RS-J/C3 |
| SHAFT END BEARING: | 6208-2RS-J/C3 |
| AMBIENT: | 40 |
| ROTATION: | DUAL |
| SERVICE FACTOR: | 1.15 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 170 |
| BREAKDOWN TORQUE: | 288 |
| BREAKDOWN TORQUE UOM: | PERCENT OF FLT |
| LOCKED ROTOR TORQUE: | 223 |
| LOCKED ROTOR TORQUE UOM: | PERCENT OF FLT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | H |
| LOCKED ROTOR AMPS: | 66.1 |
| NEMA NOMINAL EFFICIENCY: | 91.7 |
| FULL LOAD AMPS PRIMARY: | 19.1/9.6 |
| SERVICE FACTOR AMPS PRIMARY: | 21.7/10.9 |
Compartir
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
