Sta-Rite Pumps

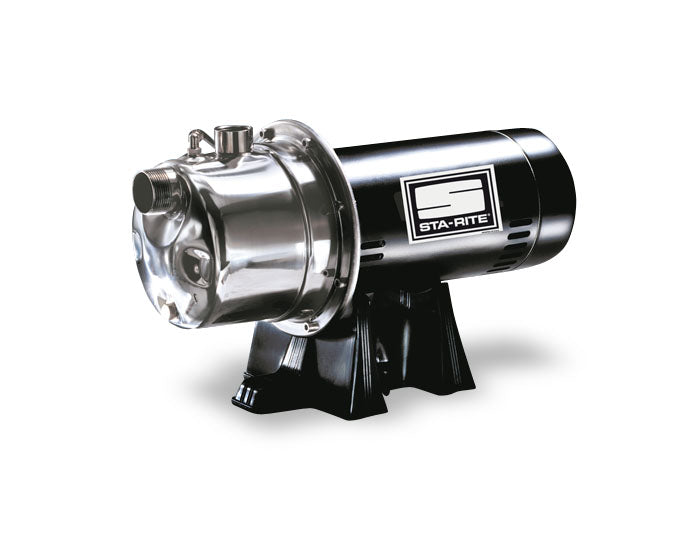

CJ90E Pentair Sta-Rite CJ Series Self-Priming Shallow Well Jet Pump, Stainless Steel (1 HP, 115/230V, 1 Phase, 25' Max. Lift, 11 GPM @ 10 FT/40 PSI)
CJ90E Pentair Sta-Rite CJ Series Self-Priming Shallow Well Jet Pump, Stainless Steel (1 HP, 115/230V, 1 Phase, 25' Max. Lift, 11 GPM @ 10 FT/40 PSI)
[COUNT] shoppers are looking at this right now
No reviews
SKU:CJ90E
Precio habitual
$969.59 USD
Precio habitual
$1,891.00 USD
Precio de oferta
$969.59 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View price in cart
No se pudo cargar la disponibilidad de retiro
CJ90E, 1 HP, 115/230 Volts, 1 Phase, 30-50 PSI Pressure Switch Setting, 1-1/4" NPT Suction Size, 1" NPT Discharge Size, 25' Max. Lift, 11 GPM @ 10 FT/40 PSI,
| Applications | |
| Water Systems and Irrigation for Homes, Farms and Cottages | |
| Features | |
| ClearJet models provide excellent performance with good pressure for wells to 25' deep | |
| Stainless steel pump body provides maximum resistance to corrosion | |
| One-piece threaded shaft for positive impeller drive and alignment | |
| Built-in Jet - High strength thermoplastic components are corrosion resistant | |
| Mechanical Shaft Seal - Highly polished carbon-ceramic and stainless steel construction | |
| Self-priming after the priming chamber has been filled with water | |
Specifications | |
Brand |
STA-RITE |
Model Number |
CJ90E |
Type |
Self-Priming Shallow Well Jet Pump |
STA-RITE Pump Series |
CJ - ClearJet Series |
HP |
1 |
Volts |
115/230 |
Phase |
1 |
Pressure Switch Setting |
30-50 PSI |
Suction Size |
1-1/4" NPT |
Discharge Size |
1" NPT |
Max. Lift |
25' |
Max. Temperature |
122F |
Max. Inlet Pressure |
50 PSI |
Max. Shut-off Pressure |
64 PSI |
GPM @ 10 FT/40 PSI |
11 |
Max. GPM |
16.1 |
Pump Body |
304 Stainless Steel |
Shaft |
416 Stainless Steel |
Jet Assembly, Diffuser, Impeller |
Noryl |
Pressure Switch |
Included |
Warranty |
1 Year |
Weight lbs. |
31 |
Notes & Pump Curve |
See Support Documents |
Pump Manual |
See Support Documents |
Support Documents (pdf) | ||||
| Notes & Pump Curve | ||||
| Installation & Parts Manual | ||||
