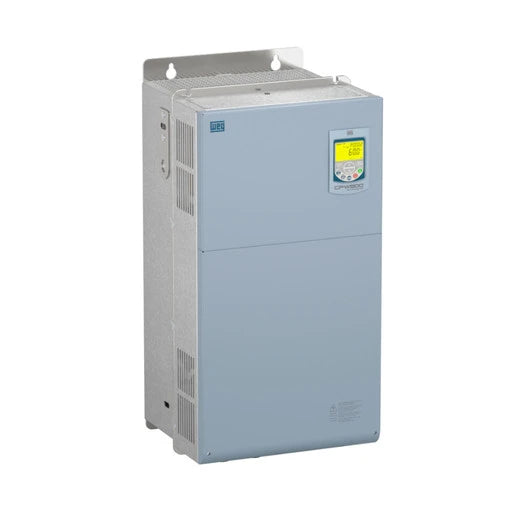

CFW500G0180T2DB20G2 WEG Drive (50 Output HP, 200-240 V, Three-phase, 180 A (ND), Without filter, IP20)
CFW500G0180T2DB20G2 WEG Drive (50 Output HP, 200-240 V, Three-phase, 180 A (ND), Without filter, IP20)
[COUNT] shoppers are looking at this right now
No reviews
SKU:CFW500G0180T2DB20G2
Precio habitual
$8,601.12 USD
Precio habitual
$10,965.00 USD
Precio de oferta
$8,601.12 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
With a modern design and power ranging from 0.25 to 175 cv (0.18 to 132 kW), the CFW500 frequency inverter is a high performance variable speed drive, which assists in controlling speed and torque of three-phase induction motors. The device offers sensorless vector, vector with encoder or scalar control modes, permanent magnet motor control, SoftPLC, which adds PLC (Programmable Logic Controller) functions, STO and SS1 Safety Functions, Pump Genius, which brings dedicated pumping functions, and selectable plug-in modules, providing a flexible and optimized solution for any application.
| Power supply | 200-240 V |
|---|---|
| Input phases | Three-phase |
| Configuration | With options |
| Rated current (ND) | 180 A |
| Rated current (HD) | 145 A |
| RFI filter | Without filter |
|---|---|
| Enclosure | IP20 |
| Dynamic braking | Standard with braking |
| Safety Stop | Prepared to install the accessory CFW500-SFY2 |
| Electronic supply | Not Available |
