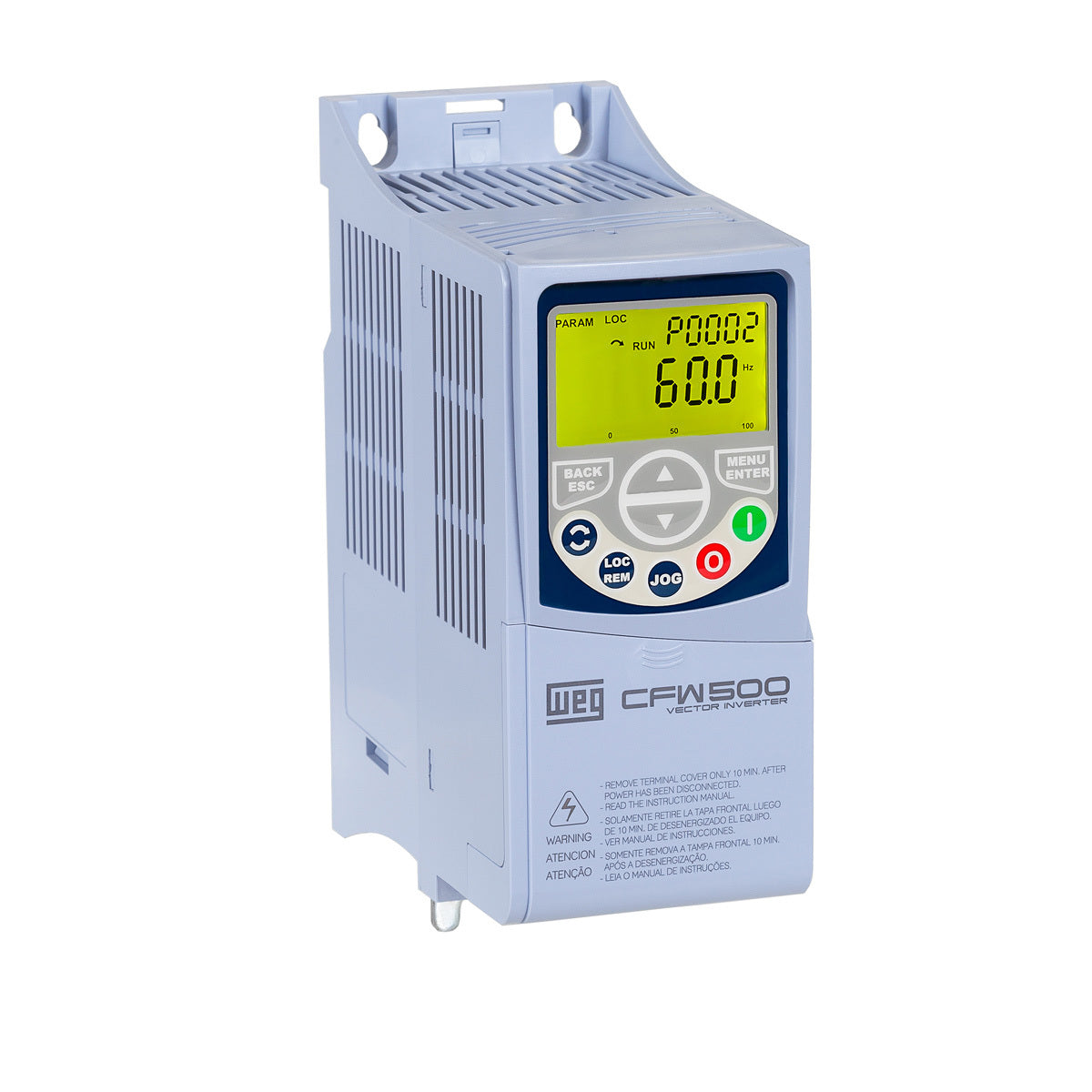

CFW500A01P6B2NB20G2 WEG Variable Speed Drive (1 HP, 60 Hz, 230 Volt, Single or Three Phase, A Frame, CFW500 Series)
CFW500A01P6B2NB20G2 WEG Variable Speed Drive (1 HP, 60 Hz, 230 Volt, Single or Three Phase, A Frame, CFW500 Series)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:CFW500A01P6B2NB20G2
Precio habitual
$357.69 USD
Precio habitual
$456.00 USD
Precio de oferta
$357.69 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
WEG CFW500A01P6B2NB20G2, Variable Speed Drive Type, CFW500 Series, 1 HP, 60 Hz, 230 Volt, Single or Three Phase, A Frame,
| Applications | |
| Centrifugal pumps, Compressors, Process pumps, Fans / Exhaust fans, Mixers / Bottlers, Washers / Driers, Extruders, Conveyor belts, Elevators, General machinery | |
| Features | |
| The CFW500 has advanced technology plug and play options, developed for fast commissioning, providing great flexibility and competitive advantage while offering excellent performance and reliability. Designed for exclusively industrial or professional use, is perfect for OEM, system integrators, panel installers and End Users providing great benefit from the added value. | |
| Vector (VVW) and Scalar (V/Hz) control | |
| Free windows based software Superdrive G2. Designed for the programming, control and monitoring the CFW500 | |
| SoftPLC: PLC functions: making it a flexible and optimized solution | |
| Internal RFI Filter: RFI Filter complying with IEC 61800-3 Category C2 or C3 as optional | |
| PID Control: Performance: changes in pressure, flow or other external data | |
| Conformal Coating (Tropicalization): as Standard Increasing the lifetime, protecting the electronic boards against corrosive atmospheres. Classified as 3C2 according to IEC 60721-3-3 | |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
CFW500A01P6B2NB20G2
|
|
Type
|
Variable Speed Drive
|
|
Series
|
CFW500
|
|
HP
|
1
|
|
Hz
|
60
|
|
Volt
|
230
|
|
Phase
|
Single or Three
|
|
Frame
|
A
|
|
Output Current (A)
|
1.6
|
|
Braking IGBT
|
N/A
|
|
Conducted Emission level 2)
|
Blank
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
||||
|
|
||||
