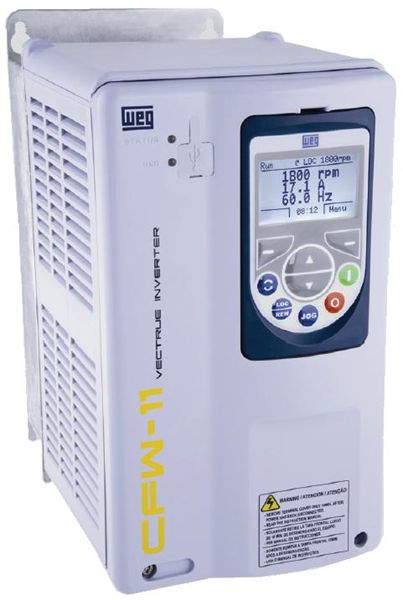

CFW110242T4SZ WEG Variable Frequency Drive (Three Phase - 380 - 480V Input, Three Phase 480V Output, IP20 , 200 HP)

WEG CFW110242T4SZ, 200 HP, 242 Normal Duty Amps, Three Phase - 380 - 480V Input, Three Phase 480V Output, 150 Heavy Duty HP, 211 Heavy Duty Amps, IP20 , WEG Micro Drive

Applications
The CFW11 is a new generation of inverters with state-of-the-art technology for three-phase induction motor control. Aimed at increasing the productivity for its customers, this new line offers many innovations.
Features
Plug and play philosophy (connect and use) enables quick and easy installation of accessories and options.
USB for microcomputer connection for using SUPERDRIVE programming and monitoring software as well as updating inverter firmware.
Human-Machine Interface (HMI) with backlit graphic display and softkeys, greatly facilitates inverter programming and operation.
DC link inductors (symetrically connected to positive and negative DC link terminals) enable compliance with IEC61000-3-12 standard requirements regarding harmonics, (no need for external line reactance)
Intelligent thermal management enables full protection of IGBTs, monitoring of heatsink and internal air temperature.
Automatic control of the heatsink fan with speed sensor (additional protection) and easily detachable from the unit for cleaning and maintenance.
Normal Duty and Heavy Duty ratings to adapt optimally to all kinds of loads.
Motor overload protection in compliance with IEC 60947-4-2/UL 508 C.
Memory card built into the standard product allows user to create functions without the need to use an external PLC (soft-PLC via IEC61131-3 programming software)
TRACE / SCOPE function to assist with the start-up and system diagnostic

Tech Specs
Brand	WEG
Model Number	CFW110242T4SZ
Type	CFW11 Variable Frequency Drive
Normal Duty HP	200
Normal Duty Amps	242
Input Power Supply	Three Phase - 380 - 480V
Output Motor Volts	Three Phase 480V
Heavy Duty HP	150
Heavy Duty Amps	211
Enclosure	IP20
DIMENSIONS H x W x D	48.6 x 16.9 x 14.2
Frame Size	F
DB	NO
Weight (lbs.)	267
Notes	See Drive Literature
Normal Duty*	Normal Duty CT- 110% / 1min
Heavy Duty*	Heavy Duty CT - 150% / 1min

Support Documents (pdf)
CFW11 Drive Literature
