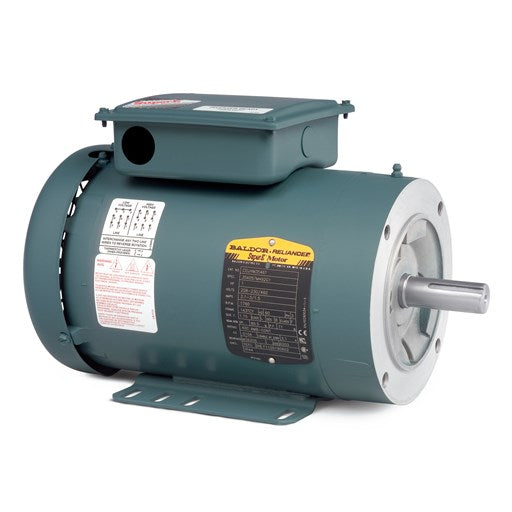

CEUHM3558T Baldor Super-E C-Face Unit Handling Motor, TEFC (2 HP, 145TCY Frame, Three Phase, 1800 RPM)

Baldor Motor CEUHM3558T, HP: 2, RPM: 1800, Volts: 208-230/460, "C" Dim: 14.17, Frame: 145TCY, Full Load Amps: 2.6, Phase: Three, Motor Mount: Foot Mounted, Enclosure: TEFC, conveyors, hoists

Applications

Unit and baggage handling, conveyors, packaging equipment,machine tools, hoists, elevators and door operators.

Features

UL/CSA recognized and CE certified. CEUHM/VEUHM motors areSuper-E with NEMA Premium efficiency, CUHM/VUHM motors are EPActefficiency and all are inverter-ready. 143-145TY and 143-145TCY frame motorshave a special base with 56, 143 and 145 slots used on OEM conveyors. 56-140frames have low profile F3 top-mounted conduit box. 3 year warranty on Super-Emotors.

Tech Specs.
Brand	Baldor Premium Efficient Super-E Unit Handling Motor
Model Number	CEUHM3558T
HP	2
RPM	1800
Volts	208-230/460
"C" Dim	14.17
Frame	145TCY
Full Load Amps	2.6
Full Load Efficiency	86.5
Apx. Wt. (lb)	52
EISA Status	A
Phase	Three
Motor Mount	Foot Mounted
Enclosure	TEFC
Type	Unit Handling Motor
Notes	Three Year Warranty
