Baldor

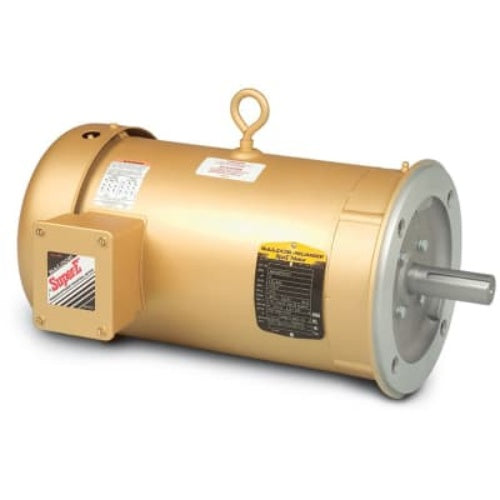

CEM2549T Baldor Motor (75HP,3540RPM,3PH,60HZ,364TSC,OPSB,F1)
CEM2549T Baldor Motor (75HP,3540RPM,3PH,60HZ,364TSC,OPSB,F1)
SKU:CEM2549T
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Catalog Number CEM2549T
Enclosure OPSB
Frame 364TSC
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 75.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals CURUSEEV
NEMA PREMIUM
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 82.000 A @ 460.0 V
164.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
Heater Indicator No Heater
High Voltage Full Load Amps 82.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 4254M
Mounting Arrangement F1
Number of Poles 2
Overall Length 25.81 IN
Power Factor 91
Product Family General Purpose
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 3540 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
