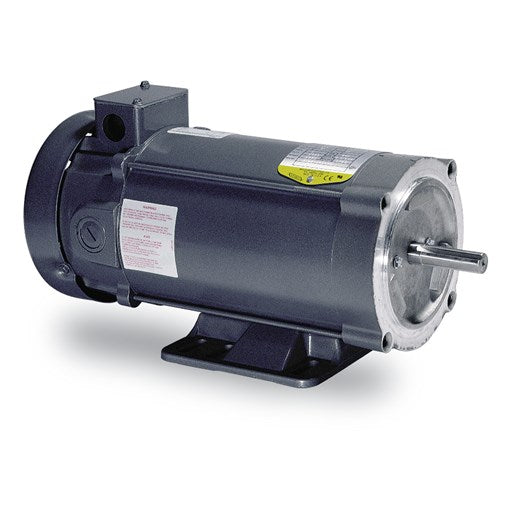

CDX7100 Baldor Shunt Wound SCR Drive Motor (1 HP, 180 VDC, Explosion Proof , 1750 RPM)
CDX7100 Baldor Shunt Wound SCR Drive Motor (1 HP, 180 VDC, Explosion Proof , 1750 RPM)
SKU:CDX7100
Precio habitual
$3,900.15 USD
Precio habitual
Precio de oferta
$3,900.15 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Baldor Motor CDX7100, HP: 1, RPM: 1750, VDC: 180, Voltage DC Field: 200/100, Full Load Amps. Arm.: 5, Full Load Amps. Field: .25/.5, NEMA Frame: 182C, : Explosion Proof,
| Applications |
| Conveyors, printing, textile equipment, machine tools(adjustable speeds with constant torque). |
| Features |
| TEFC enclosure, shunt wound, Class F insulation. Designed foruse with NEMA TYPE K SCR control, 20:1 constant torque speed range(except where noted). NEMA C-face and removable base (1) (except onexplosion proof models). NEMA 182 and larger have a thermostat (normallyclosed contracts) on the field winding. |
Tech Specs | |
Brand |
Baldor |
Model Number |
CDX7100 |
HP |
1 |
Base Speed |
1750 |
Voltage DC Arm. |
180 |
Voltage DC Field |
200/100 |
Full Load Amps. Arm. |
5 |
Full Load Amps. Field |
.25/.5 |
NEMA Frame |
182C |
Apx. Wt. (lb) |
103 |
Enclosure |
Explosion Proof |
Type |
Shunt Wound SCR Drive Motor |
