Baldor

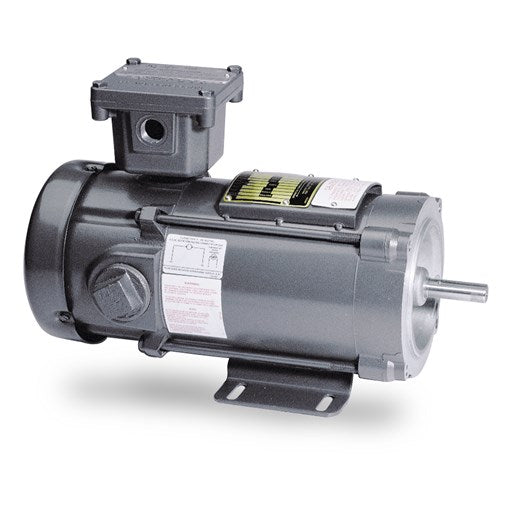

CDPX3545 Baldor Explosion Proof Permanent Magnet SCR Drive Motor (1 HP, 90 VDC, 1750 Base Speed)
CDPX3545 Baldor Explosion Proof Permanent Magnet SCR Drive Motor (1 HP, 90 VDC, 1750 Base Speed)
SKU:CDPX3545
Precio habitual
$4,589.66 USD
Precio habitual
Precio de oferta
$4,589.66 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Baldor Motor CDPX3545, HP: 1, Base Speed: 1750, VDC: 90, Full Load Amps.: 9.6, NEMA Frame: 56C, Enclosure: TEFC, Motor Mount: Rigid Base, DC Motor
| Applications |
| Conveyors, feeders, and pumps (adjustable speed and constant torque for hazardous locations). |
| Features |
| NEMA C-Face with welded on base. 20:1 constant torque speed range. UL and CSA. Class I, Group D; Class II, Group F & G. T3C. Thermostat and explosion proof conduit box included. Not tach adaptable. |
Tech Specs | |
Brand |
Baldor |
Model Number |
CDPX3545 |
HP |
1 |
Base Speed |
1750 |
Voltage DC Arm. |
90 |
Full Load Amps. |
9.6 |
NEMA Frame |
56C |
Enclosure |
TEFC |
Motor Mount |
Rigid Base |
Apx. Wt. (lb) |
72 |
Type |
Explosion Proof Permanent Magnet SCR Drive Motor |
