Baldor

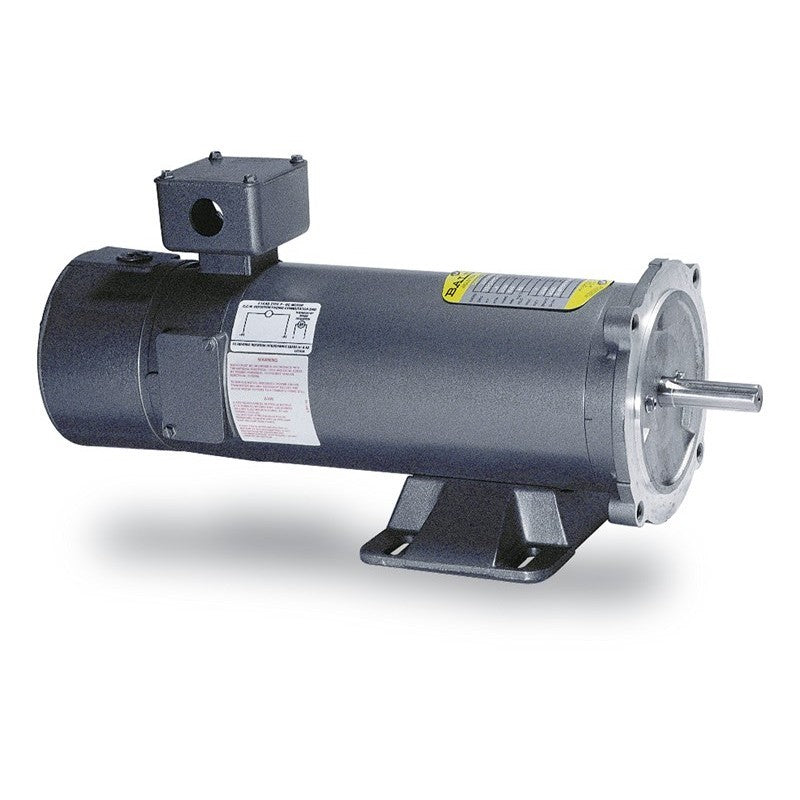

CDPT3603 Baldor Integral DC Tach Permanent Magnet SCR Drive Motor (3 HP, 180 VDC, 1750 Base Speed)
CDPT3603 Baldor Integral DC Tach Permanent Magnet SCR Drive Motor (3 HP, 180 VDC, 1750 Base Speed)
[COUNT] shoppers are looking at this right now
No reviews
SKU:CDPT3603
Precio habitual
$5,604.88 USD
Precio habitual
$7,799.00 USD
Precio de oferta
$5,604.88 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Baldor Motor CDPT3603, HP: 3, Base Speed: 1750, VDC: 180, Full Load Amps.: 14, NEMA Frame: 182ATC, Enclosure: TEFC, Motor Mount: Rigid Base,
| Applications |
| Conveyors and metering pumps (precise speed regulation). |
| Features |
| Provides an integral 50 VDC per 1000 RPM precision tachometerfor closed loop drive system. Class F insulation. 20:1 constant torquespeed range with NEMA Type K control. 1/4 - 1/2 motors are TENV, all othersare TEFC. |
Tech Specs | |
Brand |
Baldor |
Model Number |
CDPT3603 |
HP |
3 |
Base Speed |
1750 |
Voltage DC Arm. |
180 |
Full Load Amps. |
14 |
NEMA Frame |
182ATC |
Enclosure |
TEFC |
Motor Mount |
Rigid Base |
Apx. Wt. (lb) |
122 |
Type |
Integral DC Tach Permanent Magnet SCR Drive Motor |
