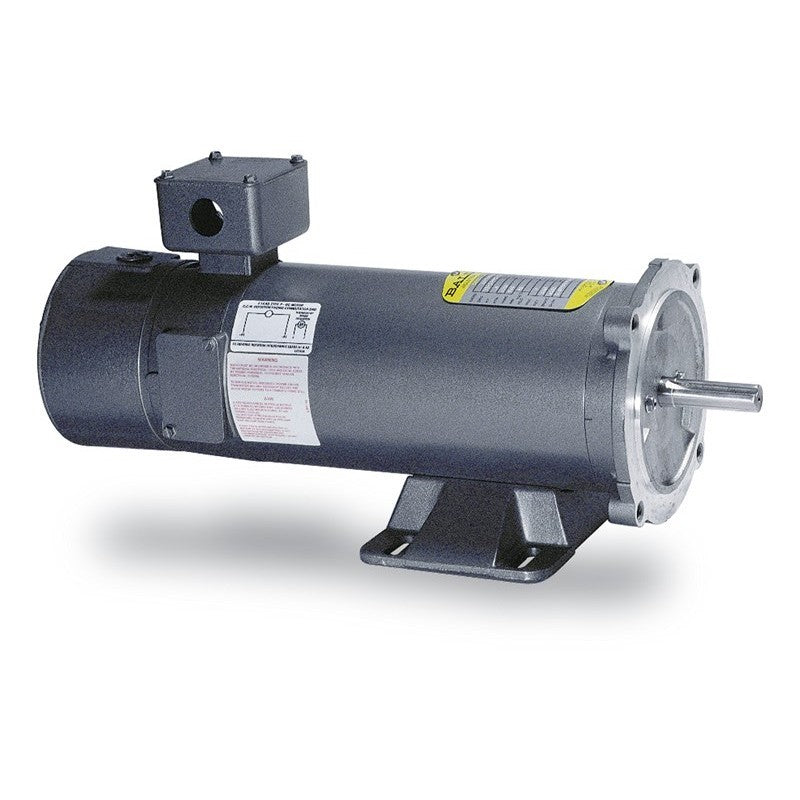

CDPT3585 Baldor Integral DC Tach Permanent Magnet SCR Drive Motor (2 HP, 180 VDC, 1750 Base Speed)
CDPT3585 Baldor Integral DC Tach Permanent Magnet SCR Drive Motor (2 HP, 180 VDC, 1750 Base Speed)
SKU:CDPT3585
Precio habitual
$4,073.29 USD
Precio habitual
Precio de oferta
$4,073.29 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Baldor Motor CDPT3585, HP: 2, Base Speed: 1750, VDC: 180, Full Load Amps.: 9.6, NEMA Frame: 143TC, Enclosure: TEFC, Motor Mount: Rigid Base,
| Applications |
| Conveyors and metering pumps (precise speed regulation). |
| Features |
| Provides an integral 50 VDC per 1000 RPM precision tachometerfor closed loop drive system. Class F insulation. 20:1 constant torquespeed range with NEMA Type K control. 1/4 - 1/2 motors are TENV, all othersare TEFC. |
Tech Specs | |
Brand |
Baldor |
Model Number |
CDPT3585 |
HP |
2 |
Base Speed |
1750 |
Voltage DC Arm. |
180 |
Full Load Amps. |
9.6 |
NEMA Frame |
143TC |
Enclosure |
TEFC |
Motor Mount |
Rigid Base |
Apx. Wt. (lb) |
79 |
Type |
Integral DC Tach Permanent Magnet SCR Drive Motor |
