Baldor

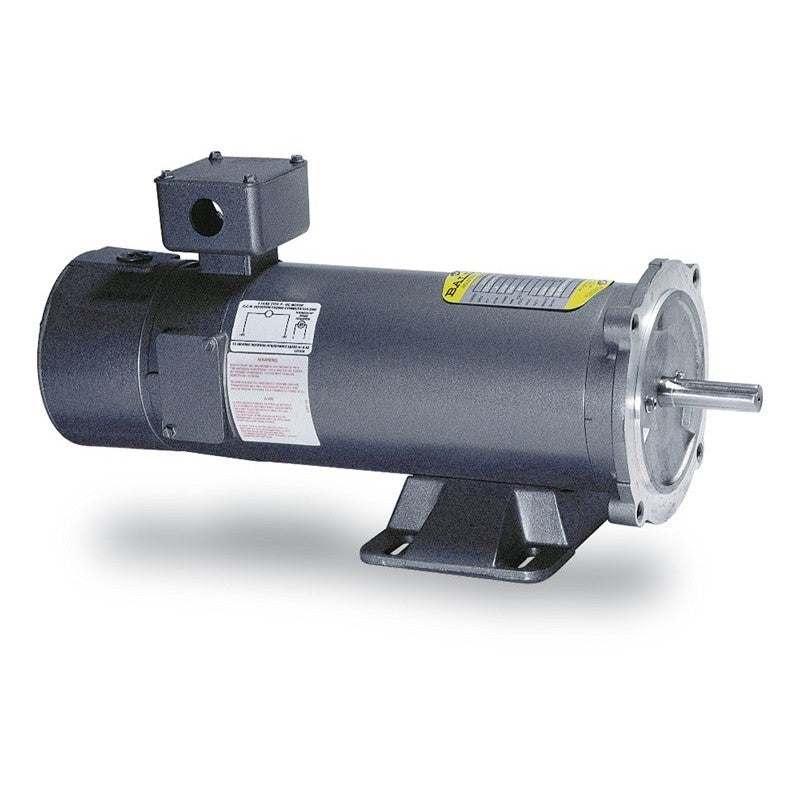

CDPT3575 Baldor Integral DC Tach Permanent Magnet SCR Drive Motor (1 1/2 HP, 180 VDC, 1750 Base Speed)
CDPT3575 Baldor Integral DC Tach Permanent Magnet SCR Drive Motor (1 1/2 HP, 180 VDC, 1750 Base Speed)
[COUNT] shoppers are looking at this right now
No reviews
SKU:CDPT3575
Precio habitual
$4,294.75 USD
Precio habitual
$5,976.00 USD
Precio de oferta
$4,294.75 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Baldor Motor CDPT3575, HP: 1 1/2, Base Speed: 1750, VDC: 180, Full Load Amps.: 7.7, NEMA Frame: 143TC, Enclosure: TEFC, Motor Mount: Rigid Base,
| Applications |
| Conveyors and metering pumps (precise speed regulation). |
| Features |
| Provides an integral 50 VDC per 1000 RPM precision tachometerfor closed loop drive system. Class F insulation. 20:1 constant torquespeed range with NEMA Type K control. 1/4 - 1/2 motors are TENV, all othersare TEFC. |
Tech Specs | |
Brand |
Baldor |
Model Number |
CDPT3575 |
HP |
1 1/2 |
Base Speed |
1750 |
Voltage DC Arm. |
180 |
Full Load Amps. |
7.7 |
NEMA Frame |
143TC |
Enclosure |
TEFC |
Motor Mount |
Rigid Base |
Apx. Wt. (lb) |
69 |
Type |
Integral DC Tach Permanent Magnet SCR Drive Motor |
