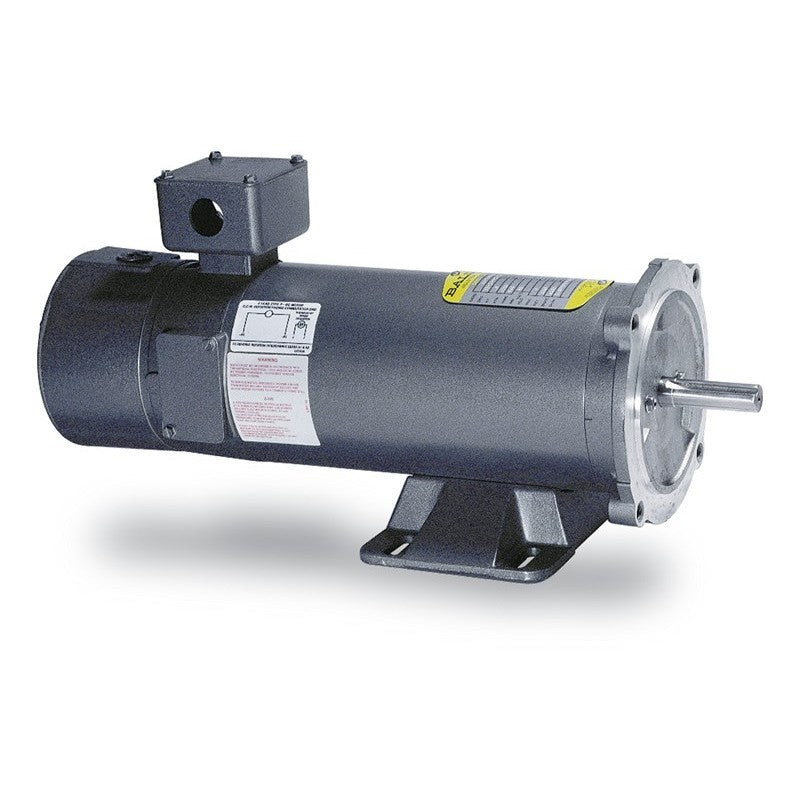

CDPT3306 Baldor Integral DC Tach Permanent Magnet SCR Drive Motor (1/4 HP, 180 VDC, 1750 Base Speed)
CDPT3306 Baldor Integral DC Tach Permanent Magnet SCR Drive Motor (1/4 HP, 180 VDC, 1750 Base Speed)
[COUNT] shoppers are looking at this right now
No reviews
SKU:CDPT3306
Precio habitual
$2,419.03 USD
Precio habitual
$3,366.00 USD
Precio de oferta
$2,419.03 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Baldor Motor CDPT3306, HP: 1/4, Base Speed: 1750, VDC: 180, Full Load Amps.: 1.25, NEMA Frame: 56C, Enclosure: TENV, Motor Mount: Rigid Base,
| Applications |
| Conveyors and metering pumps (precise speed regulation). |
| Features |
| Provides an integral 50 VDC per 1000 RPM precision tachometerfor closed loop drive system. Class F insulation. 20:1 constant torquespeed range with NEMA Type K control. 1/4 - 1/2 motors are TENV, all othersare TEFC. |
Tech Specs | |
Brand |
Baldor |
Model Number |
CDPT3306 |
HP |
1/4 |
Base Speed |
1750 |
Voltage DC Arm. |
180 |
Full Load Amps. |
1.25 |
NEMA Frame |
56C |
Enclosure |
TENV |
Motor Mount |
Rigid Base |
Apx. Wt. (lb) |
27 |
Type |
Integral DC Tach Permanent Magnet SCR Drive Motor |
