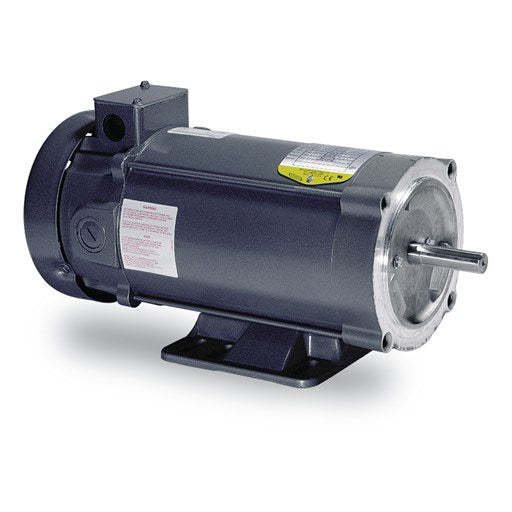

CDP3320 Baldor SCR Drive Permanent Magnet DC Motor (1/3 HP, 90 VDC, 1750 Base Speed)
CDP3320 Baldor SCR Drive Permanent Magnet DC Motor (1/3 HP, 90 VDC, 1750 Base Speed)
[COUNT] shoppers are looking at this right now
No reviews
SKU:CDP3320
Precio habitual
$1,220.37 USD
Precio habitual
$1,391.00 USD
Precio de oferta
$1,220.37 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Baldor Motor CDP3320, HP: 1/3, Base Speed: 1750, VDC: 90, Full Load Amps.: 3.2, NEMA Frame: 56C, Enclosure: TENV, Motor Mount: Removable Base, Reliance M/N: T56S1003,
| Applications |
| Conveyors, mixers, packaging machinery. |
| Features |
| NEMA C-face with removable base. Tach adaptable. Class F insulation, double sealed ball bearings. 20:1 constant torque speed range. UL and CSA recognized. 1/4 - 1/2 Hp motors are TENV, all others are TEFC. No dual mounting base holes on 1/4 - 1/2 Hp. |
|
Tech Specs |
|
|
Brand
|
Baldor
|
|
Model Number
|
CDP3320
|
|
HP
|
1/3
|
|
Base Speed
|
1750
|
|
Voltage DC Arm.
|
90
|
|
Full Load Amps.
|
3.2
|
|
NEMA Frame
|
56C
|
|
Enclosure
|
TENV
|
|
Motor Mount
|
Removable Base
|
|
Apx. Wt. (lb)
|
27
|
|
Type
|
SCR Permanent Magnet DC Motor
|
|
Reliance M/N
|
T56S1003
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
