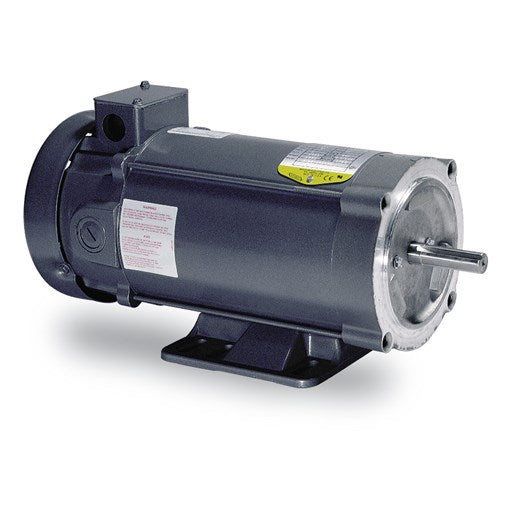

CD7502 Baldor Shunt Wound SCR Drive Motor (2 HP, 180 VDC, TEFC , 1750 RPM)

CD7502 Baldor Shunt Wound SCR Drive Motor (2 HP, 180 VDC, TEFC , 1750 RPM)

CD7502

$4,878.84 USD
$4,878.84 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Baldor Motor CD7502, HP: 2, RPM: 1750, VDC: 180, Voltage DC Field: 200/100, Full Load Amps. Arm.: 9.5, Full Load Amps. Field: .4/.8, NEMA Frame: 213C, : TEFC,
Applications
Conveyors, printing, textile equipment, machine tools (adjustable speeds with constant torque).
Features
TEFC enclosure, shunt wound, Class F insulation. Designed for use with NEMA TYPE K SCR control, 20:1 constant torque speed range (except where noted). NEMA C-face and removable base (1) (except on explosion proof models). NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding.

Tech Specs

Brand
Baldor
Model Number
CD7502
HP
2
Base Speed
1750
Voltage DC Arm.
180
Voltage DC Field
200/100
Full Load Amps. Arm.
9.5
Full Load Amps. Field
.4/.8
NEMA Frame
213C
Apx. Wt. (lb)
105
Enclosure
TEFC
Type
Shunt Wound SCR Drive Motor
