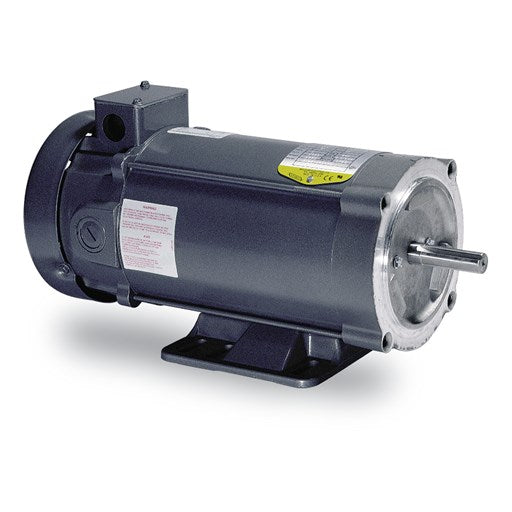

CD6219 Baldor Shunt Wound SCR Drive Motor (1 HP, 90 VDC, TEFC , 1750 RPM)

Baldor Motor CD6219, HP: 1, RPM: 1750, VDC: 90, Voltage DC Field: 100/50, Full Load Amps. Arm.: 9.6, Full Load Amps. Field: .55/1.1, NEMA Frame: 182C, : TEFC,

Applications

Conveyors, printing, textile equipment, machine tools(adjustable speeds with constant torque).

Features

TEFC enclosure, shunt wound, Class F insulation. Designed foruse with NEMA TYPE K SCR control, 20:1 constant torque speed range(except where noted). NEMA C-face and removable base (1) (except onexplosion proof models). NEMA 182 and larger have a thermostat (normallyclosed contracts) on the field winding.

Tech Specs
Brand	Baldor
Model Number	CD6219
HP	1
Base Speed	1750
Voltage DC Arm.	90
Voltage DC Field	100/50
Full Load Amps. Arm.	9.6
Full Load Amps. Field	.55/1.1
NEMA Frame	182C
Apx. Wt. (lb)	64
Enclosure	TEFC
Type	Shunt Wound SCR Drive Motor
