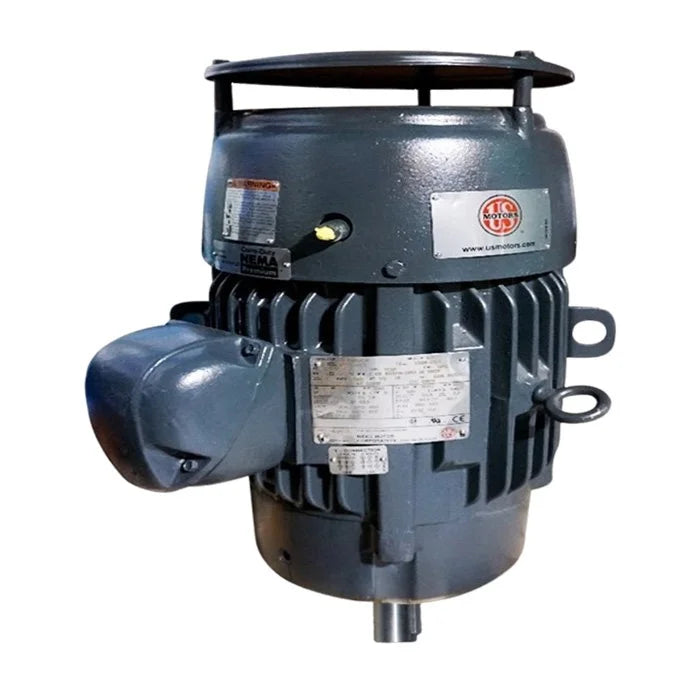

CD5P1ECR US Motor Vertical C-Face World Motor CORRO-DUTY (5 HP, TEFC, 3525 RPM, 3 Phase, 184TC Frame, 208-230/460 Volt)

CD5P1ECR US Motor Vertical C-Face World Motor CORRO-DUTY (5 HP, TEFC, 3525 RPM, 3 Phase, 184TC Frame, 208-230/460 Volt)

👁️ [COUNT] People are currently viewing this product.

CD5P1ECR

$1,075.53 USD
$1,455.00 USD $1,075.53 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

CD5P1ECR US Motor Vertical C-Face World Motor CORRO-DUTY (5 HP, TEFC, 3525 RPM, 3 Phase, 184TC Frame, 208-230/460 Volt)

Model_Number
JE84
PRODUCT NAME
5 HP - TEFC-IP55 - 3525
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC-IP55
HORSEPOWER
5
POLES
2
NUMBER SPEEDS
1
RPM
3525
HERTZ
60
VOLTS PRIMARY
208-230/460
FRME
184
KILOWATTS
3.7
RPM 2
3525
RPM 3
3500
RPM 4
2910
RPM 5
2910
HERTZ 2
50
VOLTS
460
VOLTS 2
230
VOLTS 3
208
VOLTS 4
400
VOLTS 5
200
SHAFT CODE
TC
MOUNTING
HORZ-FOOTLESS
ASSEMBLY POSITION
NA
MOTOR TYPE
TCE
OPPOSITE END BEARING
6205-J/C3
SHAFT END BEARING
6206-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
130
BREAKDOWN TORQUE
324
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
286
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
J
LOCKED ROTOR AMPS
50
NEMA NOMINAL EFFICIENCY
88.5
FULL LOAD AMPS PRIMARY
13.5-12.3/6.1
